Product Details
Product Description
Product Description
BELLAD skid steer loader mini skid steer loader BL280
Product Description
Feature for BELLAD BL380 Mini Skid Steer Loader :
Operating weight: 840-1068kg
oprating load: 200kg

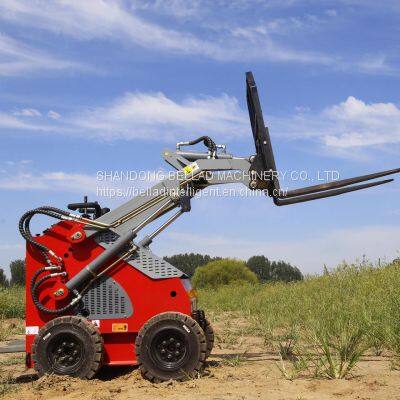

BL380 is a versatile mini skid steer loader. 360° skid steer type, Small Compact body, easy to handle, they can link with different attachments for a variety of job need, such as mini digger. Widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms, cave, chemical plant and so on.
Performance Paramete
Item
| BL280
| BL380
| BL380C
|
| With rubber track
| With Chevron engineering tyre
|
| Metric
| U.S
| Metric
| U.S
| Metric
| U.S
|
Max. working height
| 2065mm
| 81.3inch
| 2143mm
| 84.37inch
| 2143mm
| 84.37inch
|
Max.pin height
| 1803mm
| 71inch
| 1884mm
| 74.17inch
| 1884mm
| 74.17inch
|
Max. dumpling height
| 1386mm
| 54.6inch
| 1488mm
| 58.58inch
| 1488mm
| 58.58inch
|
Max.dumping distance
| 471mm
| 18.5inch
| 348mm
| 13.7inch
| 348mm
| 13.7inch
|
Max.dumping angle
| 32°
| 32°
| 30°
| 30°
| 30°
| 30°
|
Rollback of bucket on ground
| 33°
| 33°
| 25°
| 25°
| 25°
| 25°
|
departure angle
| 18°
| 18°
| 11°
| 11°
| 16°
| 16°
|
Total height
| 1309mm
| 51.5inch
| 1233mm
| 48.54inch
| 1265mm
| 50inch
|
Ground clearance
| 123mm
| 4.8inch
| 118mm
| 4.65inch
| 118mm
| 4.65inch
|
Wheel base
| 690mm
| 27.2inch
| 636mm
| 25inch
| 636mm
| 25inch
|
Overall length without bucket
| 1778mm
| 70inch
| 1752mm
| 69inch
| 1980mm
| 78inch
|
Total width
| 800mm
| 31.5inch
| 1160mm
| 45.67inch
| 1160mm
| 45.67inch
|
Bucket width
| 820mm
| 32.3inch
| 980mm
| 38.6inch
| 980mm
| 38.6inch
|
Total length with bucket
| 2210mm
| 87inch
| 2206mm
| 86.9inch
| 2430mm
| 95.7inch
|
Tum radius forward turning(R)
| 1237mm
| 48.7inch
| 1307mm
| 51.5inch
| 1307mm
| 51.5inch
|
SHANDONG BELLAD MACHINERY CO., LTD
Contact：Richie
Mobile：+86 13356718553(whatsApp/wechat)
Email: richie_shi@outlook.com
>>
