Product Details
Product Description
Product Description
Product Introduction

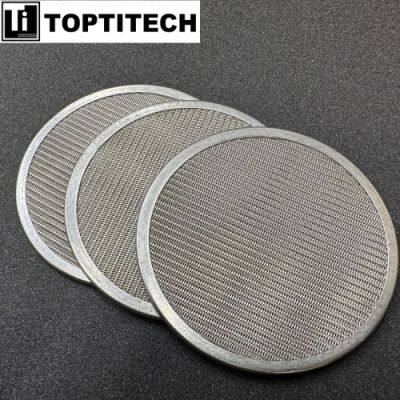

TOPTITECH's 100um 5-layer Sintered SS316L Wire Mesh Filter Plate With Edge is crafted with meticulous attention to detail, this filter plate epitomizes efficiency and durability in one seamless design. The intricate network of interconnected pores, carefully sintered using Type 316L stainless steel, ensures exceptional particle retention capabilities, making it ideal for applications demanding stringent filtration requirements. Its innovative 5-layer structure, with progressively finer mesh layers, guarantees enhanced filtration performance, allowing for the efficient removal of particles down to 100 microns with ease. Noteworthy is its resistance to high temperatures up to 900°F in reducing environments, underscoring its versatility across a spectrum of industrial settings.
This specialized filter plate excels in various applications, including solid gas separation mufflers, air purification systems, and high-pressure backwash filtration in corrosive environments. Its seamless integration of advanced materials and design principles delivers a superior depth filtration experience, ensuring optimal performance and longevity. Combined with its capacity for moisture-proof heat insulation and dust removal, this filter plate emerges as a reliable solution for critical filtration needs in the pharmaceutical, chemical fiber, and high-temperature environments.
Specifications
Material: SS316L
Thickness: 1.7mm
Diameter: 80mm
Filtration grade: 100um
Layer: 5 layers
Technique: Sintering
Features
Exceptional Durability: Engineered with an outstanding anti-wear property and rigidity, this filter plate ensures long-lasting reliability in demanding industrial environments.
High-Temperature Resilience: Capable of withstanding extreme temperatures up to 900°F, this filter plate excels in harsh working conditions, maintaining optimal performance under duress.
Superior Corrosion Resistance: Featuring excellent acid and alkali resistance, this filter plate remains unaffected by corrosive elements, ensuring longevity and reliability in corrosive environments.
Precision Filtration: Offering accurate filtration precision down to 100 microns, this filter plate guarantees efficient particle removal, meeting the most stringent filtration requirements with finesse.
Extended Service Life: With robust construction and advanced materials, this filter plate delivers a prolonged service life, minimizing downtime and maintenance costs.
Optimized Flow Characteristics: Engineered with a sophisticated multi-layer design, this filter plate ensures uniform gas and liquid distribution, promoting efficient flow dynamics and minimizing pressure drop across the filtration system.
Applications
Chemical and Pharmaceutical Processes: Ideal for the filtration of liquids and gases in chemical and pharmaceutical applications, ensuring the removal of contaminants and impurities to meet stringent quality standards.
Water Treatment and Purification: Essential in water treatment systems, this filter plate aids in the removal of particulates and impurities, contributing to the production of clean and potable water.
Automotive and Aerospace Industries: Employed for air filtration in automotive and aerospace applications, ensuring clean air intake for engines and critical systems, enhancing operational efficiency and longevity.
Oil and Gas Industry: Vital in the oil and gas sector for well drilling and refining processes, facilitating the removal of solid particles and impurities from fluids to maintain equipment integrity and operational efficiency.
Food and Beverage Processing: Integral in food and beverage processing, providing reliable filtration of liquids and gases to ensure product quality and safety compliance.
Medical and Healthcare Devices: Utilized in medical and healthcare devices such as implants and surgical instruments, ensuring sterile environments and product integrity for patient safety and well-being.
Environmental Protection and Pollution Control: Plays a pivotal role in environmental protection and pollution control initiatives, aiding in the removal of pollutants and contaminants from air and water sources to safeguard ecosystems and public health.
The overview of the processing technique and function of the mesh plate edge:
Processing Technique:
The edge of the filter plate undergoes a meticulous processing technique to enhance its durability and stability. This process typically involves:
Trimming: The raw filter plate is trimmed to the desired size, ensuring uniformity and precision in the final product.
Edge Folding: The edges of the filter plate are carefully folded to create a reinforced border, enhancing mechanical strength and preventing fraying or damage during handling and installation.
Sealing: The folded edge is sealed using advanced welding or bonding techniques to secure the layers of the filter plate, preventing separation and ensuring a tight seal to maintain filtration efficiency.
Function:
The edge reinforcement of the 5-layer Sintered SS316L Wire Mesh Filter Plate serves several essential functions:
Prevention of Fraying: By folding and sealing the edges, the filter plate's structural integrity is enhanced, preventing fraying of the mesh layers and maintaining consistent filtration performance over time.
Enhanced Mechanical Strength: The reinforced edge provides additional mechanical strength, ensuring that the filter plate can withstand handling, installation, and operational stresses without compromising its filtration efficiency.
Seal Integrity: The sealed edge creates a secure barrier that prevents bypass of unfiltered fluids or gases, ensuring that all substances pass through the filtration layers, maximizing filtration effectiveness.
Longevity: The edge reinforcement contributes to the longevity of the filter plate by protecting against wear and tear, extending its service life and reducing the need for frequent replacements.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer's designated place without damage.
Contact Us
TEL: +8619992203758
FAX: 0917-3873009
Email:karrykang@bjygti.com
Company: TOPTITECH -- BAOJI YINGGAOCO., LTD
Website:/
ADD: No. 195, Gaoxin Avenue, High-tech Development Zone, Baoji City, Shaanxi, China
>>
