Hot Sale Customized New Table Sliding Panel Saw Zd400t

Product Description

Product descriptions from the supplier Overview

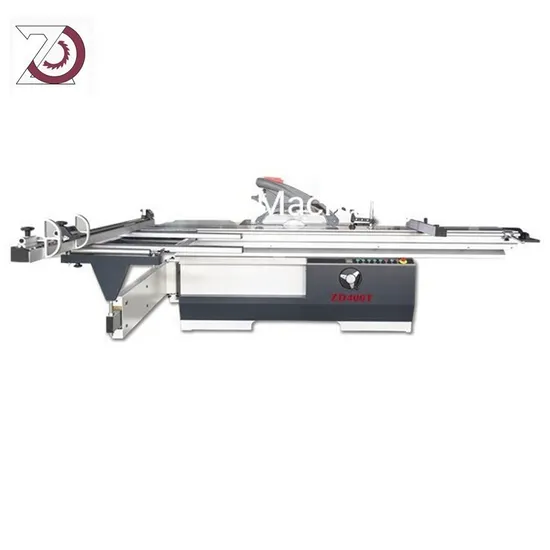

ZD400T sliding table saw
This saw is destined to cut solid wood panel, chipboard, ABS board, PVC board, organic glass board and other board which have the similar structure and hardness. It is the necessary working tool for furniture production and decoration industry. It is made of the body, sliding table, support for sliding table, fixed table, main saw blade, scoring blade, up & down system,the transverse and vertical guide plate, etc. The sliding table carriage is linear structure, exact and durable and made of high-strength extruded aluminum alloy, sliding table is high in strength and won't be bent. With oxidation treatment, sliding table surface is beautiful and enduring.
Double layer:European style double layers high strenth Aluminum profile sliding table can support the larger panels,with high precision.
Electric box:Independent electric box is dustproof,which can low rate of power failure.Top quality electric parts more sensitive and longer lifetime.
Motor :The cutting assemblu of this sliding table saw was projected to assure a high quality and procise cut.With 5.5km for the saw blade and 1.1Kw for scoring blades.
European style dust hood The saw blade protectin allows the operator to visualize the panel while cutting and increases the dust extractin capacity.

Standard roller guide
high positioning accuracy longer service life.Runmore smoothly high yield strength makes difficult deformation of sliding table Anodic oxidation treatment makes high abrasion performance.
Main ruler
Made of aluminum ensure the cutting precision,strength savig the baffile plate is enlarged,the olare is firm,the ruler can be placed on both sides,sand the pushing plate is flexible.
Product Specifications

No	Item	Data
1	demension of sliding table	3200*415mm
2	gross cut capcity	3200mm
3	witdth of cut between saw blade and rip fence	1250mm
4	titing saw group	0-45°
5	diameter of main saw blade	400mm
6	max cutting height 90°	120mm
7	speed of main saw spindle	3000/4000/5000r.p.m
8	main saw motoe power	5.5kw
9	main spindle diameter	30mm
10	diameter of scoring saw blade	120mm
11	speed of scoring saw spindle	8000r.p.m
12	scoring saw motor power	1.1kw
13	scoring saw spindle diameter	22mm
14	gross weight	1100kg
15	overall diamension	3250*3150*900mm

Application
PVC MDF Venner
Exhibition
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a company specializing in the production and export of woodworking machinery. It can provide customers with professional woodworking machinery products. The company has professional technology, a full set of testing lines and 4 professional woodworking machinery production lines.
The company has established a complete sales system and the products have been sold to many countries and regions in the world, such as Europe, Russia, Southeast Asia, the Middle East, North America, and Australia. The company adheres to the tenet of "quality first, customer first", strictly implements quality management, actively develops and manufactures new products, and provides comprehensive pre-sales and after-sales services. Certifications
Customer Feedback

FAQ

---
