Basic Info.
Machining Process
Hydraulic
Item
Concrete Mixer Pump Machine
Horizontal Conveying Distance
100m
Vertical Conveying Height
50-60m
Maximum Aggregate Diameter
30mm
Delivery Volume
30-35m3/H
Transport Package
Wooden Cases
Specification
2100*1000*1200 mm
Production Capacity
50000sets/Year
Product Description

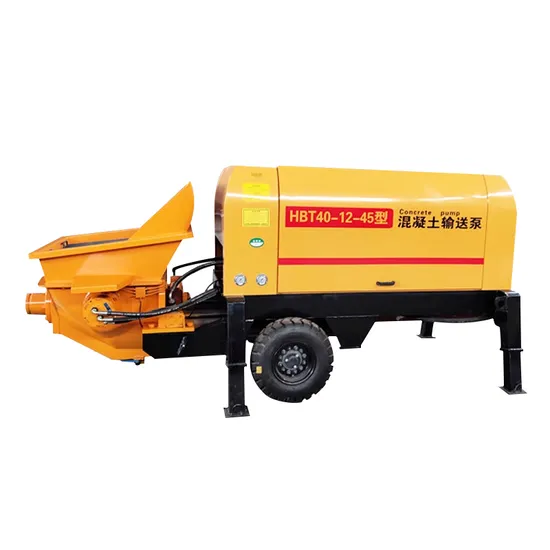

Factory price mobile stationary diesel concrete pumping machine Product Description
Newly developed concrete pump can deliery concrete, mortar, cement, fireproof material, etc. It is suitable for fine stone concrete transportation to higher construction floor column pouring. It is the smallest concrete pump in China, mainly for some special construction conditions or narrow sites, which is inconvenience in work or difficult to complete the construction schedule.
| Model | YG-20 | YG-30 | YG-40 | YG-50 |
| Engine | Diesel, 4102 | Diesel, 4105 | Diesel, 4108 | Diesel, 6102 |
| Power | 22kw | 37kw | 45kw | 55kw |
| Max. aggregate size | 20mm | 30mm | 40mm | 50mm |
| Conveying Capacity | 10-15m³/h | 15-30m³/h | 30-40m³/h | 40-50m³/h |
| Horizontal conveying distance | 100-120m | 150-200m | 200-350m | 200-300m |
| Vertical conveying distance | 50-60m | 80-100m | 120-140m | 120-140m |
| Pipe diameter | 80-100mm | 80-100-125mm | 80-100-125mm | 100-125-150mm |
| Outlet diameter | 100mm | 125mm | 125-150mm | 150mm |
| Material tank diameter | 120mm | 140-160mm | 160-180mm | 200mm |
| Pipe | steel pipe * 40m
soft pipe *10m | steel pipe * 40m
soft pipe *10m | steel pipe * 40m
soft pipe *10m | steel pipe * 40m
soft pipe *10m |
| Dimension | 2800x1100x1300mm | 4000*1400*1500mm | 4000*1500*1550mm | 4200*1800*1700mm |
| Weight | 900kg | 1800kg | 2500kg | 3000kg |
