ABS HIPS Plastic Sheet Extrusion Line Manufacturer

Product Description

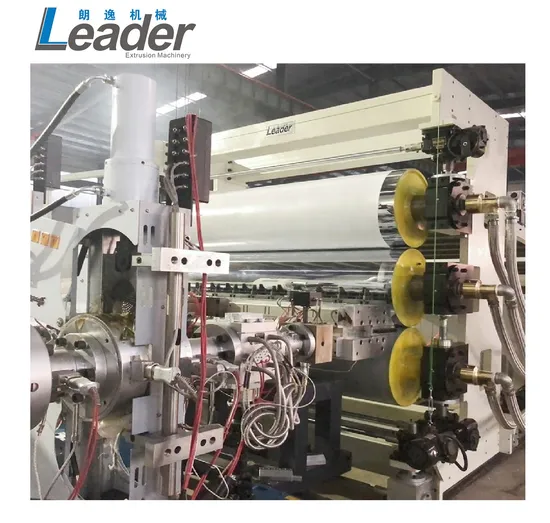

ABS HIPS Bladder for refrigerators Sheets Plate Making Machine Co-Extrusion Line
This line is widely used for home appliance field,such as internal for refrigerators,out shell for washing machine and air conditioner etc. It can be produced with additives to different requirements such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting etc.
SHEET FEATURES AND APPLICATIONS: The sheet retains the features of acrylic surface rigidity and gloss, and also has the advantage of ABS impact resistance.
SHEET SPECIFCATIONS: thickness: 1-8mm, width: 1220-2100mm

tem	Description	Data
1	Raw material vacuum feeding machine	1 set
2.	Degassing type single screw extruder 120/38	1 set
3	Hydraulic exchanging unit+ melting gear pump	1 set
4	T-type die head-JC-times brand	1 set
5	Three roller calendar-vertical type, alloy steel material	1 set
6	Rollers theromocontrolling machine-oil circulation cooling	1 set
7	Cooling frame/rollers conveyor	1 set
8	Trimming units-cross saw cutting units	1 set
9	Haul off machine-2 pieces of NBR rubber rollers	1 set
10	Plastic cutting machine-guillotine and saw cutting machine	1 set
11	Stacker	1 set
12	Water chiller	1 set
13	Electrical cabinet	1 set

COMPANY CERTIFICATIONS OF:
COMPANY CERTIFICATIONS OF:
OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION 1. PC/PP hollow profile sheet/hollow grid sheet extrusion line Processing material: PC/PP virgin material plus recycle material Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm Net sheet width: 1220mm-2100mm Layer structure: Single layer or multi-layer Capacity: 200-600kg/h Application: Ads. Decoration, roofing, packaging, printing, etc. 2. ABS/HIPS sheet extrusion machine: Processing material: ABS/HIPS virgin pellets plus recycle material Thickness range: 1-6mm Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement) Layer Structure: Single layer or multi-layer Capacity: 400-800kg/h Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc. 3. ABS/PMMA sheet extrusion machine: Processing material: ABS/PMMA virgin pellets plus recycle material Thickness range: 1-8mm Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement) Layer structure: Single layer or multi-layer Capacity: 400-800kg/h Application: Vacuum forming, bathtub, etc. 4. PP PE foam board/sheet extrusion line Processing material: PP, PE , Foam additives, master batch Thickness range:0.8-3-12mm Net sheet width: 600mm-1260mm- Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C) Capacity: 150-500kg/h Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc. 5. PE HDPE sheet extrusion machine: Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material Thickness range: 1-2.5mm, 3-35mm Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm Layer structure: Single layer or multi-layer Capacity: 200kg/h-1200kg/h Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc. 6. PC/GPPS/PMMA sheet extrusion machine: Processing material: PC/GPPS/PMMA virgin pellets plus recycle material Thickness range: 1-12mm Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement) Layer Structure: Single layer or multi-layer Capacity: 400-600kg/h Application: Ads., decoration, roofing, etc. 7. PP/PS sheet extrusion machine: Processing material: PP/PS virgin pellets plus recycle material; Thickness range: 0.15-2mm Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement) Layer structure: Single layer or multi-layer Capacity: 200kg/h-1000kg/h Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc. 8. PET sheet extrusion machine: Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes Thicknes range: 0.2-1.5mm Net sheet width: 650mm-1500mm(or as per cusotmer's requirement) Layer structure: Signle layer or multi-layer Capacity: 150-500kg/h Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc. 9. PVC sheet/edge banding sheet/marble sheet machine: Processing material: PVC power plus other additive Thickness range: 0.15-1mm; 1-3mm; 3-12mm Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements) Layer structure: Single layer or multi-layer Capacity: 200kg/h-500kg/h Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc. 10. EVA car interior decoration sheet extrusion line Processing material: EVA and other additives Thickness range: 1-8mm Width range: 1000-1800mm Layer strcuture: single layer Capacity: 500-800kg/h Application: automotive sealing strips, sound insulation cushion, sound absorption sheets, automobile tail box, fenders, car interior and exterior decoration parts etc. 11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine Processing material: PVC, PMMA and other additives Thickness range: 1-8mm Width range: 720mm, 880mm, 1040mm Layer structure: A/B, A/B/A, A/B/C Capacity: 400kg/h Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.

---
