Intelligent Control 4uds-90 Three Point Suspension Style Medium Scale Potato Harvester

Product Description

Product Description
AUTOMATIC LOADING HARVESTER
Potato automatic loading harvester has good performance and efficiency and can harvest crops directly into the transport truck.
It can be made according to the actual planting situation of farmers with the corresponding width of the harvester, which is mainly used for harvesting Potatoes, sweet potatoes, and other underground root crops.
Potato automatic loading harvester has automatic loading and harvesting efficiency high, low damage rate, light operation, no vibration, no blocking grass, fast soil leakage, simple structure, long service life, and so on.
These machines come in different sizes and types, including manual, semi-automatic, and automatic models, as well as those specifically designed for small-scale or large-scale farming operations.
Product Parameters

4UDS-90 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Type of excavation device	Movable Shovel
2	Working Size (length*width*height)	2900*3000*1700mm	11	Blade Material	65Mn
3	Transport Dimensions (length*width*height)	2900*2200*2300mm	12	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	775kg	13	Depth Limiting Mechanism Type	Central Pull Rod
5	Working Width	900	14	Conveyer Type	Belt type
6	Operation Efficiency	≥0.13 ha/h	15	Conveyor Chain Clearance	45mm
7	Supporting Power/Machine Horsepower	≥70HP	16	Chain Bar Material	55CrSi
8	Matched To The Power Output Shaft Speed	540r/min	17	collection method	Instant loading
9	Matchng Hanging Width	600mm	18	Collection height	≤1500mm
Note:The values in the specification table are theoretical values,please refer to actual values.

4UDS-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Type of excavation device	Movable Shovel
2	Working Size (length*width*height)	2900*3200*1700mm	11	Blade Material	65Mn
3	Transport Dimensions (length*width*height)	2900*2400*2300mm	12	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	800kg	13	Depth Limiting Mechanism Type	Central Pull Rod
5	Working Width	1100	14	Conveyer Type	Belt type
6	Operation Efficiency	≥0.17 ha/h	15	Conveyor Chain Clearance	45mm
7	Supporting Power/Machine Horsepower	≥70HP	16	Chain Bar Material	55CrSi
8	Matched To The Power Output Shaft Speed	540r/min	17	collection method	Instant loading
9	Matching Hanging Width	600mm	18	Collection height	≤1500mm
Note:The values in the specification table are theoretical values,please refer to actual values.

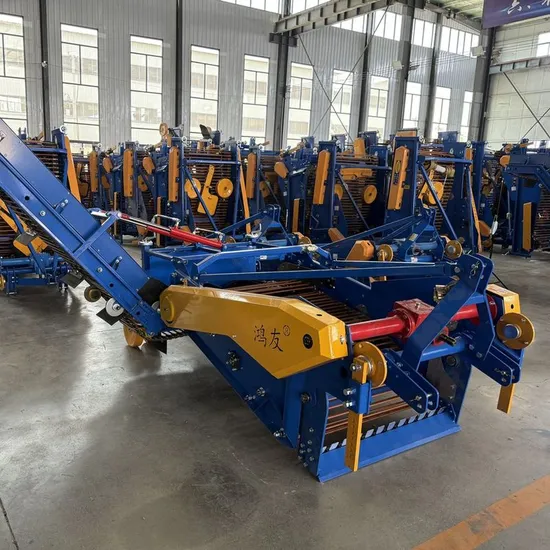

Detailed Photos
MULTIFUNCTIONAL HARVESTING:
This machine is designed to harvest multiple crops, including potatoes, sweet potatoes, and peanuts, making it an ideal investment for farmers with diverse agricultural needs.
RELIABLE PERFORMANCE:
The machine features a gear drive system and a powerful motor, ensuring reliable performance and durability in various farming conditions.
SUITABLE FOR VARIOUS FARM SIZES:
This harvester is suitable for farms of all sizes, including small, medium, and large-scale operations, making it a versatile addition to any agricultural operation.
OUR ADVANTAGE:
1.It features working efficiency, lower breakage rate, and lower skin break rate.
2. Light & quick running without vibration, no blocking by the grasses, leaks the soil quickly, lower buried potato rate.
3. The penetrating angle of the excavating device is the same as the elevation angle of the transfer & separate device. It effectively solves the problem of soil accumulation after shoveling.
4. Matching power is the common four-wheel tractor, it features wide adaptation, strong applicability, low investment, and ease of operation.
OUR FEATURE:
1. Single-row potato harvester machine for sale can be used in various tubers harvest, such as potato, sweet potato, peanut, garlic, and so on.
2. This Single-row potato harvester machine for sale has high efficiency, low breaking rate, and fast working speed without vibration.
3.The Single-row potato harvester machine for sale has no block grass & soil leakage fast, simple structure & durable.

FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.

---
