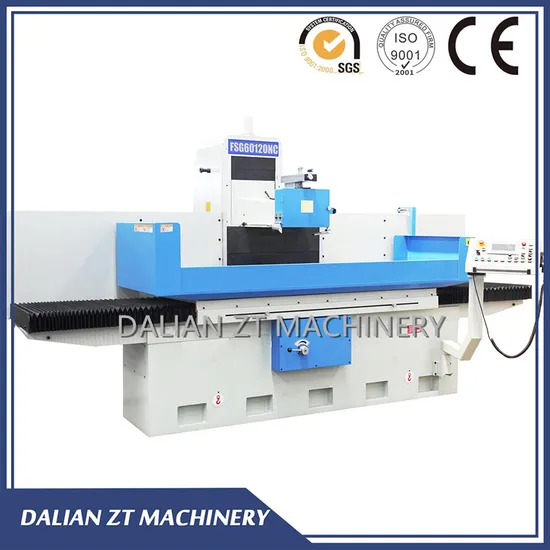

3-axis NC Magnet Chuck Surface Grinding Machine 600X1200mm Worktable

Product Description

Features:
Independent hydraulic station;
Automatic center lubrication unit;
Auto grinding program including rough, finish and spark-out stroke to realize automatic grinding;
High precision spindle unit with angular ball bearing;
MPG is equipped for Y & Z-axis to improve production efficiency;
The machine is the column-moving grinding machine with horizontal spindle and rectangular worktable. The machine is a very efficient machine consisted by the technologies of mechanical, electrical and hydraulic. The machine can grind the workpiece automatically by do the simple settings through the control panel.
The worktable longitudinal movement (X axis): the machine's longitudinal movement is controlled by the hydraulic system, the speed of movement can be adjusted by the handle locates in front of the machine. The movement direction is controlled by the electro hydraulic valve.
The column cross movement (Z axis): the column movement is by the timing belt and leadscrew driven by the servo motor. So that the machine can make continuous feed and auto interment feed. T
The hydraulic power is supported by the hydraulic station. The hydraulic station equips with the oil temperature controller. The hydraulic station can provide the power for the high precision grinding and keep the heat and shake form the machine.
The machine equips the complete electro interlock protection.

Standard accessories:
Tools and tool box;
Coolant tank;
Balancing arbor;
Grinding flange and wheel;
Grinding wheel extractor;
Levelling wedge;
MPG for Y/Z-axis;

Item	SG-60120NC	SG-60160NC
Table size W*L	630x1250mm	630x1600mm
Max. Grinding size W*L	600x1000mm	600x1000mm
Max. Distance from table to spindle center	600mm
Magnetic chuck size (optional)	600x1000mmx1	600x800mx2
Speed of table longitudinal movement	5-25m/min
Wheel head cross movement
Auto intermittent feed	0-30mm/t
Rapid travel	0-600mm/min
Feed of MPG	0.005mm/div.
Wheel head vertical movement
Auto feed	0.005,0.01,0.02,0.03,0.04
Rapid feed	0-300mm/min
Spindle motor	7.5kW	7.5kW
Packing size	399x225x250cm	564x225x250mm
Gross weight	5500kg	6000kg

Standard accessories:
Working lamp;
Balancing shaft;
Splashing guard;
Standard grinding wheel;
Levelling wedge;
Built-in magnetic chuck controller;
Coolant tank;
Wheel dresser;
FAQ
1. MOQ
1 set
.
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.

3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
