General Store Items Gondola Shelf Supermarket Display Rack Shelf

US$42.00-86.00 10 Pieces (MOQ)

Basic Info.

Model NO.
YD-S002A
Side Number
Double Sided
Weight
Middle Weight
Rotary
Fixed
Usage
Shop, Supermarket, Drug Store, Convenient Store
Customized
Customized
Condition
New
Capacity
80-120kg/Layer
Layer
1-7 Layers
MOQ
10 PCS
OEM/ODM
Available
Finish
Powder Coated
Function
Shop Display
Color
White/Black/Yellow/Any Color
Sample
Available
Port
Shanghai
Delivery Time
10-15 Days
Transport Package
Carton
Specification
L1000*W1000*2000mm
Trademark
YUANDA
Origin
Jiangsu China
HS Code
94032000
Production Capacity
30000PCS/Month

Product Description

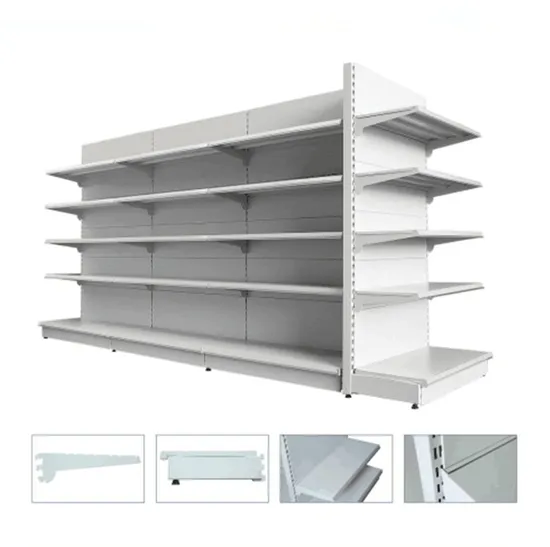

General store items gondola shelf supermarket display rack shelf Product Description
1). Usual size: L1000 X W1000 X H2000mm, double side, 4 layers
L1000 X W500 X H2400mm, single side, 5 layers
2). Layers for each unit: 3-7 layers are choiceable
3). Weight capability: 50--180kg/layer just according to material choice
4). Each layers are adjustable freely
5). Easy to assemble & dismantle
6). Packing: Upright with bubble foam wrapped, others with carton
7). Different dimension, thickness, color, type are available for us
8). OEM service can be offered
Contect Us:
Sales : April
phone number: +86-18255643822

Euro style:
Basic shelving components Size options(mm)
Upright Section size/ 30x60/ 30x80/
Lenght/ 1410/1510/1610/1710/1810/1910/2010/2110/2210/2310/2410/
2510/2610/2710/2810/2910/3010
Thickness/ 2.0/ 2.5
Base leg Length 200/250/300/370/470/570/670/770
Height 60/110/160/260
Shelf Width 665/800/1000/1250/1330
Depth 200/250/300/370/470/570/670/770
Thickness 0.7/0.8
Wire shelf Width 665/1000/1250/1330
Depth 370/470/570
Dia 2.8
Preforated backpanel Width 665/800/1000/1250/1330
Height 400/500
Thickness 1.0/1.2
Back panel Width 665/800/1000/1250/1330
Height 100/200/300/400/500
Thickness 0.6/0.7
Bracket Hook number 2/3/4
Length 200/250/300/ 370/470/570/670/770
Thickness 2.5/3

American style:
Basic shelving components Size options
Upright height 30'' thru 120'' in 6'' (152 mm) incremnets
Kicker plate Length 2' to 4' in 6'' increments
Top/bottom spanner Width 3' or 4'
Hardboard Backs height 6", 12", 18", 24", 30", 36", 42", 48", 54", 60", 66", 72"
(Pegboard and Marteck) Length 2' to 4' in 6'' increments
Shelf Width 2' to 4' in 6'' increments
Depth 7''-31''
Angular adjustment flat, 17° or 30° downslope positions
Base Shelf Width 2' to 4' in 6'' increments
Depth 7''-31''
Wire shelf Width 2' to 4' in 6'' increments
Depth 7''-31''
Angular adjustment flat, 17° or 30° downslope positions

Australian style:
Basic shelving components Size options(mm)
Upright(single side) Depth 200/250/300/320/350/400/450/500
Height/ 1200/1500/1800/2100/2400
Thickness/ 1.5/ 2.0
Shelf Width 600/630/900/930/1200/1230
Depth 200/250/300/320/350/400/450/500
Thickness 0.5/0.6/0.7/0.8/0.9/1.0
Wire shelf Width 600/630/900/930/1200/1230
Depth 335/405
Dia 2.7
Preforated backpanel Width 600/630/900/930/1200/1230
Height 100/300
Thickness 0.7/0.8/0.9/1.0/1.2
Back panel Width 600/630/900/930/1200/1230
Height 100/300
Thickness 0.6/0.7/0.8/0.9
Volcano back panel Width 600/630/900/930/1200/1230
Height 100/300
Thickness 0.8/0.9/1.0
Mesh back Height 1200/1500/1800/2100/2400
Width 600/630/900/930/1200/1230
Bracket Hook number 2/3/
Length 250/300/ 320/350/400/450/500
Thickness 2.0/2.5/3
Rear/ front beam Length 600/630/900/930/1200/1230
Wire fence Length 600/630/900/930/1200/1230

Asia style:
Basic shelving components Size options
Upright Section 30*60*2.0mm; 30*80*2.0mm;
height 1350;1550;1850;2150;2550mm
Kicker plate Length 500; 650;700;800;900;1000;1100;1200;1300mm
Flat back panel height 300mm; 150mm
Length 500; 650;700;800;900;1000;1100;1200;1300mm
Pegboard panel height 300mm; 150mm
Length 500; 650;700;800;900;1000;1100;1200;1300mm
Thickness 0.5; 1.2mm
Shelf Width 500; 650;700;800;900;1000;1100;1200;1300mm
Depth 200; 300;350;400;450;500;550;600mm
Angular adjustment flat, 17° or 30° downslope positions
Base Shelf Width 2' to 4' in 6'' increments
Depth 7''-31''
Bracket Length 200; 300;350;400;450;500;550;600mm
Thickness 2.5; 3mm
