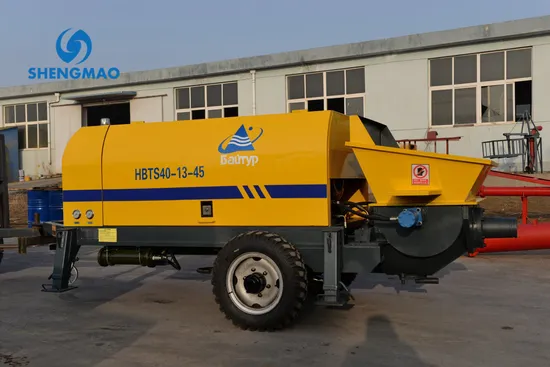

Hbts40 Secondary Construction Column Mobile Small Portable Hydraulic Drive Electric Type Concrete Pump

Product Description

Product description
Concrete pump is used to deliver concrete to the job site above ground or underground, such as high-rise buildings or tunnel construction. Our concrete pump can deliver concrete to about 200 meters in height and 300 meters in length.
We use world-famous brand for the main parts of our concrete pump which can ensure the performance of the machine. Such as the Korean Kawasaki oil pump, Italy Manuli hydraulic hose, Japanese OMRON PLC, USA Parket seal, France Schneider electrical elements, etc.
All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites.
Currently, we have 30m3/h to 90m3/h electricity powered or diesel-powered concrete pump for you to choose. Welcome to contact us for details and quotations.
Concrete Pump Diesel Type

Model	HBTS40R	HBTS60R	HBTS80R	HBTS90R
Max.Dlivery Capacity(L/H)(m3/h)	40/26	61/37	84/45	95/55
Main Hydraulic Pump Brand	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki
Max.Pumping pressure(L/H)(MPa)	7.6/10	7/12	7.6/16	9.3/18
Delivery Pipe Diameter(mm)	125	125	125	125
Diesel Engine Brand	Weichai	Weichai	Weichai	Weichai
Diesel Engine Power(KW)	82	129	140	176
Max.Dlivery Distance(V/H)(m)	120/500	120/500	160/800	360/1200
Max.aggregate Diameter(mm)	40	40	50	50
Overall Size(mm)	5000*1850*1700	4820*1750*1770	6000*2160*2600	6000*2200*2250
Total Weight(kg)	5500	7200	7700	8200

Concrete Pump Electric Type

model	HBTS40	HBTS50	HBTS60	HBTS80
Max.Dlivery Capacity(L/H)(m3/h)	40/23	62/27	82/48	101/61
Main Hydraulic Pump Brand	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki	Flutek Kawasaki
Max.Pumping pressure(L/H)(MPa)	7.6/10	7.3/12	7/13	8.3/16
Delivery Pipe Diameter(mm)	125	125	125	125
Motor Brand	Weihai wendeng	Weihai wendeng	Weihai wendeng	Weihai wendeng
Motor Power(KW)	45	55	90	110
Max.Dlivery Distance(V/H)(m)	120/500	120/500	160/800	160/800
Max.Aggregate Diameter(mm)	40	40	50	50
Overall Size(mm)	4500*1750*1600	5200*2000*2260	5900*2000*2260	6000*2100*2250
Total Weight(kg)	4700	5500	7200	7700

After-sales Service
1. Provide 7 * 24 hours online after-sales service every week
2. Provide relevant certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Dispatch after-sales engineers to install and commission equipment abroad, and provide free training for operators and maintenance personnel for operation and maintenance
4. Establish a complete customer profile, regular inspections, regular visits, free maintenance services and technical
improvements
5. Equipped with a spare parts warehouse, you can guarantee the fast supply of all accessories. During the warranty period, the parts required for equipment damage will be borne by the company, the customer does not have to pay any fees

---
