Anon Compact Disc Harrow Hydraulic Heavy Duty Disc Harrow

Product Description

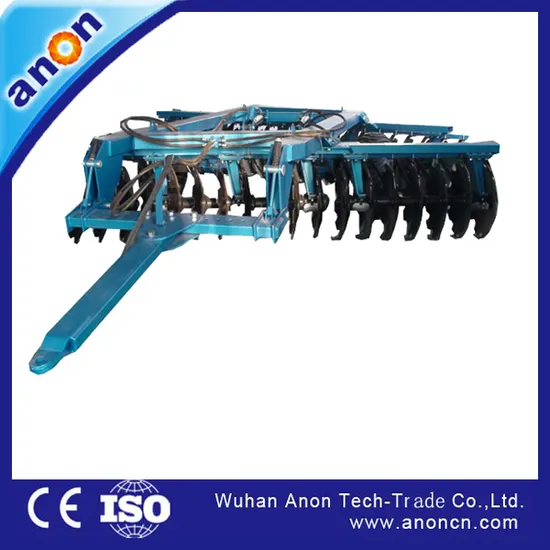

ANON compact disc harrow Hydraulic heavy duty disc harrow
It is designed for field work as crop residue processing before tillage
breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage,
planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead
of plough. This harrow has high harrowing capacity with reasonable utilization of power, great ability to penetrat
and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil
wasteland and weedy field as well.
Having absorbed all advantages from exotic machines and designed according to the standard of ASME,
this harrow has adopted combined structure whose rigid frame is welded with square tube, equipped with
hydraulic up-and-down road wheels, spring leveling device and sealed bearing with spheroid outer surface
and square inner hole special for disc harrow.
Therefore this machine easy to move with small turning radius, simple to be adjusted and maintained technologically advanced in configuration, is an innovated farm implement with long service life famous in China.

Model Number	ANLCBB-2024	ANLCBB-2428	ANLCBB-2834
Working Width(m)	2.4	2.8	3.4
Working depth(mm)	200/220	200/220	200/220
Qty of disc(pcs)	20	24	28
Disc diameter(mm)	660*6/710*8	660*6/710*8	660*6/710*8
Distance between disc(mm)	240	240	240
Linkage	traction	traction	traction
Tyre type	11L-5	11L-5	11L-5
Overall weight	1800/2000	2100/2350	2400/2700
Matched power(HP)	80-120	120-160	180-220

---
