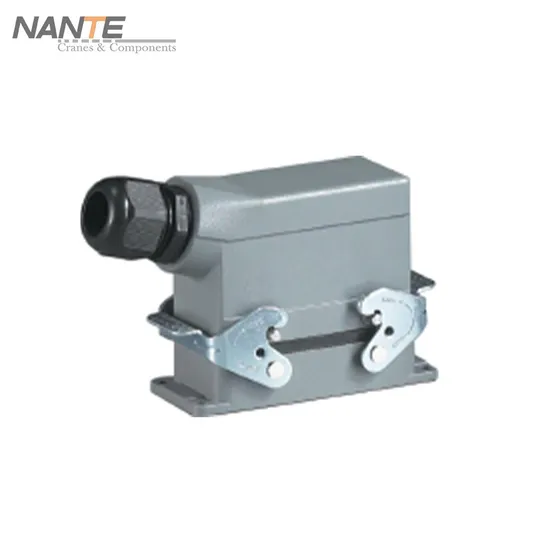

Side Entry Pg21 Cable Gland16pin Socket for Control Panel

Product Description

Side entry PG21 cable gland16pin Socket for control panel Product Description
General description:
Nante can provide Socket for control panel and festoon system which can reduce installation time and costs for customers. Their system comes with rugged die cast aluminum housings with dual locking elements to ensure a secure connection. A standard 16-pin plug and receptacle is offered for applications from 16 to 60 Amps and for wire sizes up to 14 AWG.

Design Feature:The connector have the features:
1. Quick connect and disconnect
2. Easy for assemble
3. High quality aluminum housings with dual locking elements
Accessories:
Male insert
Male insert with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
Female insert
Female insert with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
Hoods
Hoods with low or high construction, side or top cable entry, 2 or 4 bolts, 1 or 2 locking levers.
Housing
Bulkhead mounting housing with or without protection cover, 1 or 2 locking levers.
Surface mounting housing with low or high construction, with or without protection cover, 2 or 4 bolts, 1 or 2 locking levers, 1 or 2 cable entries.
Cable entry protection
Cable glands with normal or multiple sealing.
Metal or plastic cable glands.
Special cable entry protection or extensive range of accessories.
Product Application
NANTE Socket is used for plugging and connecting cables for control panel and festoon system. Widely applied for workshop lifting equipments such as overhead crane, gantry crane, etc.
Product Parameters

Socket Feature
Rated Voltage	400V	500V	690V
Rated Current	16A	35A	80A
Pin Number
4Pin		HSB-04
6Pin			HK4/2
10Pin	HE-10
16Pin	HE-16
24Pin	HE-24
Max.Wire Gauge	4.0mm2/12AWG	6mm2/10AWG	16mm2/5AWG
Stripping Length	7.5mm	11.5mm	14.0mm
Flame Rating	V0 ( Acc.to UL94 )
Protection Class	IP65
Cable Gland	M20, M25, PG16, PG21

Company Profile

Company Information
FAQ

Q1: Are you Manufacturer or Trading Company,A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department,Q2: Which standard of your crane and crane components apply to?A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.Q3: How do you ensure your product quality?A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.Q4: How can I make payment?A: We accept T/T bank transfer, L/C, Paypal.Q5: How can I assembly the cranes in my factory?A: We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.Q6: What is the warranty period, and how can I claim warranty If my crane have any issue?A: Our warranty period is 12 months after cargo leave China port. If the crane have any issue, our after-sales team and engineer will help you solve the issue by email or Video conference. If the defect is caused by quality issue, we will ship the spare parts to you by air to help you fixed it as soon as possible.Q7: Do you accept OEM business:A: Sure, we do many OEM productions for some famous crane brand and customers around the world.Q8: What about shipping:A: We recommend small batch by the way of air or LCL, but large delivery by the way of container or bulk vessel.Q9: what about delivery time?A: different capacity crane and components have different estimated delivery time, generally speaking, around 4 weeks to 8 weeks.Q10: What is your company policy if we want to distribute NANTE product in our market?A: Firstly, thank you for your interest to promote NANTE brand, we have distributors in 50+ countries, pleaes no hesitate to contact us for the detail discussions, as we have different policies for the different target markets. Surely, you are welcomed to visit our factory and let's talk face to face.

---
