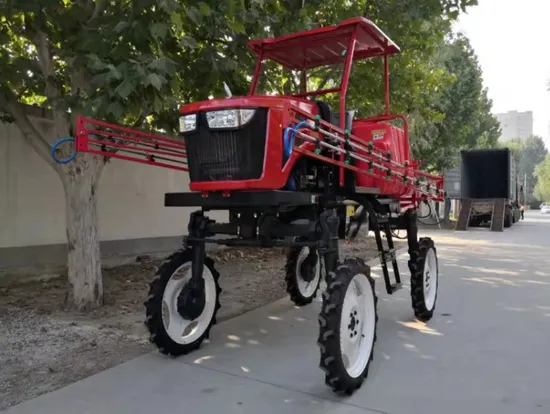

800L Tractor Boom Sprayer for Insecticide and Fertilization Self Propelled Diesel Engine Tractor Sprayer

Product Description

Sprayer can Customization.
SELF PROPELLED BOOM SPRAYER(88hp changchai engine,tank capcaity 800L,sprayer width 16m,Fertilizer,Sun roof, four wheel drive,min clearance ground 1.3m,sprayer boom height:600-1800m)
Hot Sales Sprayer
Sprayer Details
Loading Container(One 40HC Container 6units Sprayer)
A/C Cabin Sprayer Loading Pictures(One 40HC Container Can load 3units)
Different Tyre Can Optional

Characteristics	Detailed specification
Machine Dimension
Overall length (mm)	4270
Overall Width (mm)	1850
Overall Hight (mm)	250
Wheelbase (mm)	1550(optional1800)
Turning Radius (mm)	2750
Tread (mm)	1535
Effective Ground Clearance (mm)	1200( Axle Housing )
Minimum Ground Clearance (mm)	1200(optional 1500)hign gound clearance
Engine
Horse Power (HP)	50hp/88hp/102hp
Type	Quanchai /changchai, Water cooled 4 cycle, 4 cylinder Standing Diesel engine
Total Displacement (L)	1.028
Rated Output (Kw (PS) / rpm)	16.5(22.4)/3600
Starting Method	Key Starter
Transmission Type	4WD.4WS
Steering System	Full Hydraulic Power Steering
Gear System	Hydrostatic Transmission System
Spray Tank Capacity (Liters / imp.gal)	500/700/800L/1000L
Spray Pump Type	3 Position Diaphragm Pump
Spray boom Height	500mm-1500mm
Fertilizer applicator Wide	10-25width
Spray Width( m)	12M,14m,16m,18m,20m

We can make sprayer according to your requirement. Now spray Tank 500L/700L/800L is popular. The engine can optional 50hp /88hp/102hp. We can optional air conditioner. If you need spray rice and wheat ,cotton, Vegetable,can use normal 1.2m ground clearance. If you need spray corn,sugarcane, you shoud choose 1.5m ground clearance. OHE 40HC CONTAINER CAN PUT 6UNITS ,A/C Cabin Can load 3unit

---
