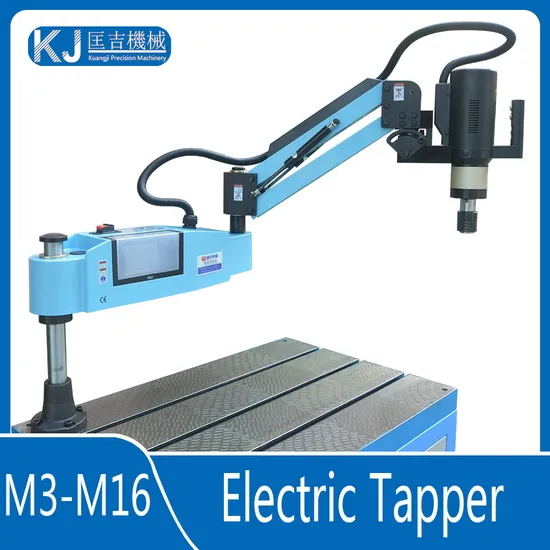

M3-M16 Upgrade Dual System Vertical Drilling Threading Tapper Electric Flexible Tapping Machine

Product Description

Machine Features The Electric servo cantilever drilling and taping machine is suitable for drilling and tapping various machines, moulds and auto parts.
The whole machine adopts the suspended manipulator mode, which realizes the integrated interchange of tapping, which is flexible and convenient.
The operation interface adopts Touch Screen operations to make tapping easier and more convenient, which can be operated by any general worker.
This machine adopts cantilever tapping, which is fast and convenient replacing the existing tapping products in the market.

MODEL NO	Tapping Range	Control Panel	Tapping Direction	Working Radius
M3-M16	steel part M3-M12	touch screen	vertical/crosshise	1 meter
	aluminum part M3-M16
Voltage	Power	Reduction Ratio	Rotate Speed	Weight
220V	600W	16:01	0-375rpm	about 32kg

---
