Auto-Focus 2.5D Video Measuring Machine for Plastic Modings

Product Description

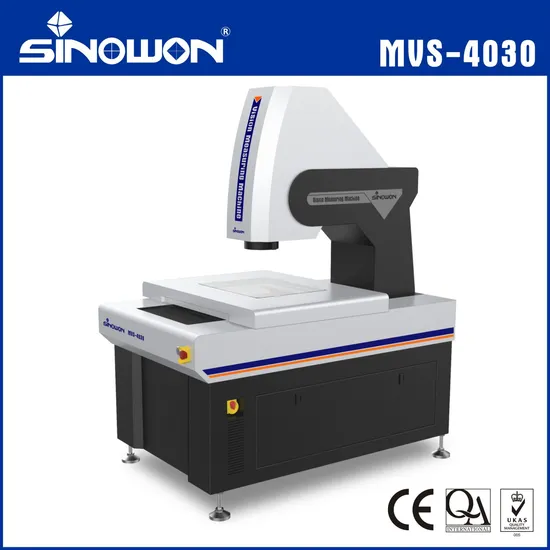

MVS-4030 Auto Focus Auto Vision Measuring Machine

Product Characteristics: Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently; With proprietary powerful function fully auto measuring software iMeasuring 4.1; Can set auto measurement, and finish batch measurement with high efficient; Laser, probe, coaxial illumination and other parts are optional; Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption. Technical Specification:

Product Name		2.5D Auto Vision Measuring Machine
Model		MVS-4030
Code#		523-370
X/Y-axis Travel(mm)		400x300
Z-axis Travel(mm)		200
X/Y/Z 3-axis Linear Scale(mm)		High precision linear scale,resolution:0.0005mm
Guidance Mode		Precision linear guide,double-track double slider guide
Operation Mode		Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy*		XY-axis:≤3+L/200(um)
		Z-axis:≤5+L/200(um)
Repeatability		±2um
Video System**		High definition 1/3" Color CCD Camera,
		6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification:26X~172X(21.5"monitor)
Field of View(mm) (Diagonal * Horizontal*Vertical)	Lens Magnification	0.7X	1X	2.0X		3.0X	4X	4.5X
	1/3"CCD	8.57x6.86x5.14	6.00x4.80x3.60	3.00x2.40x1.80		2.00x1.60x1.20	1.50x1.20x0.90	1.33x1.07x0.80
Illumination	Contour	LED Parallel Contour Illumination
	Surface	5-ring 8-division 0~255 grade continue adjustable
Software System		iMeasuring 4.0 Fully Auto Measuring Software
Load Capacity		25Kg
Working Environment		Temperature 20ºC±2ºC,Humidity Range<2ºC/hr,Humidity 30~80%,Vibration<0.002g,<15Hz
Power		220V/50Hz/10A
Dimension		1350x880x1650mm
Packing Dimension		1460x1100x1900mm
Weight		450Kg

* L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Customers can choose 0.5X or 2X optional objective, and realize image magnification: 13X~86X or 52X~344X.
Application:
Semiconductor Manufacturing: Wafers, front-ends, back-ends, and components

Precision Metal Processing: Machining, Stamping, Powder Metallurgy Injection Molding
Precision plastic
You Precision, Our Mission!

---
