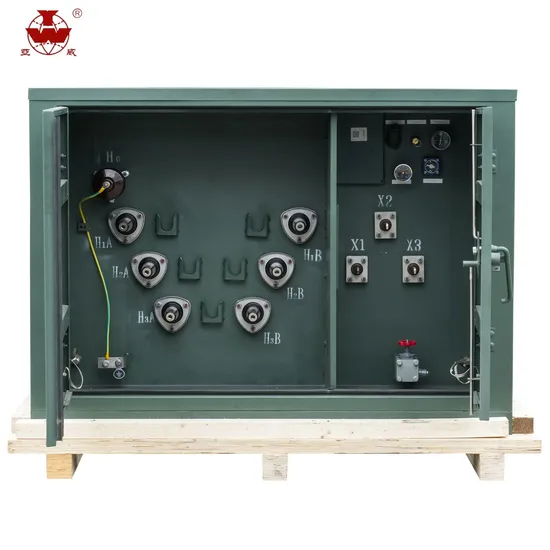

Yawei IEEE Standard 2000kVA 1600kVA 11kv 13.2kv 13.8kv Loop Feed Pad-Mounted Transformers

Product Description

Product DescriptionPad mounted transformersPad-mounted transformers are made in power ratings from around 75 to around 5000 kVA and often include built-in fuses and
switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and
allows for flexibility in repair and maintenance.Our pad mounted transformer is designde and tested in accordance with industry standards including CSA,ANSI C.57,DOE,and IEEE as applicable.
ZGS11-H(Z) Combined transformerZGS11 series combined transformer is a new type of power distribution equipment. It has small volume and reasonable structure. Combined transformer is especially applicable to the load center city grid, so it can reduce the consumption and improve the quality of power supply.What's more, this series of products have been widely used in communities across the country, public places and industrial mining enterprise and other distribution sites.
Product features

1.	Fully sealed and insulated structure can guarantee the security of person.
2.	It is not only used for ring network but also terminal.
3.	Low loss,low noise, superior performance.
4.	Low temperature,overload ability.
5.	Transformer adopts special structure and its outstanding advantages is high quality.

Product detailsSpecification

Pad Mounted Transformer
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	Loss (W)
			No-load Loss (W)	On-load Loss (W)
75KVA	34.5KV/19.92KV/13.8KV/79.57KV/13.2KV/7.62KV/12.47KV/7.2KV or others	240V480V277V600v347V	180	1250
112.5KVA			200	1500
150KVA			280	2200
225KVA			400	3050
300KVA			480	3650
500KVA			680	5100
750KVA			980	7500
1000KVA			1150	10300
1200KVA			1320	12120
1500KVA			1640	14500
2000KVA			2160	20645
2500KVA			2680	27786
3000KVA			3300	30300
3750KVA			4125	37875

Certifications
Why choose usOur advantages
Company style
Exhibition
Company Profile
Yawei Group has more than 50 engineering and technical personnel, more than 1000 employees, covering an area of 240,000 square meters, and the annual sales of the group company reaches 2.5 billion yuan, among which Jiangsu Yawei Transformer Co., Ltd. sells 1.3 billion of medium-sized transformer enterprises, and the enterprise has successively won the honor of Jiangsu Quality trustworthy enterprise, national high-tech enterprise, Nantong quality, measurement, equipment, environmental protection, contract-respecting and credit-keeping Advanced Collective, Nantong civilized unit, Nantong, the industrial growth enterprise of Hai'an city, the top 20 industrial enterprises of Hai'an city, the quality pacesetter of Hai'an city, the Quality Award of Mayor of Hai'an city, the provincial four-star Shangyun enterprise, the specialized special new small giant enterprise of Nantong city, etc.
The company has a relatively strong production capacity and efficient marketing team. Products include 110KV, 220KV large ultra-high voltage transformers and 35KV below various dry transformers, oil-immersed transformers, amorphous alloy transformers, pre-installed substation and various specifications of box transformer, furnace transformer, rectifier transformer, mining transformer and other special transformers. All products of the company have passed the routine, type and special tests of the National Transformer Quality Supervision and inspection Center and Wuhan High Voltage Research Institute of the State Electric Power Corporation. The enterprise has passed IS09001:2015 quality management system certification; Jiangsu province enterprise measurement certification; At the same time, 10KV, 35KV class power transformers, box substation and the adoption of IEC certification. Product sales cover the national market, but also exported to Australia, New Zealand, India, Madagascar, Vietnam and other countries and regions.
For a long time, the power transformer adhere to the "quality first, management norms, to develop" the management policy, adhering to the "good polity, harmonious coexistence, service society" business philosophy, foreign attaches great importance to the local culture, create a right place, right time and the development of the atmosphere, and the power sector and the broad masses of customers to maintain good relations of cooperation win-win and mutual benefit,; Internally, we actively advocate the "people-oriented management concept, fully respect the initiative of employees, adhere to pragmatic management, and improve the cohesion of employees. Under the premise of maintaining the steady operation of the enterprise, it has established a good corporate image.
Packaging & Shipping
FAQ1.Who are we?
We are based in Jiangsu, China, start from 2007,sell to Domestic Market(80.00%),Southeast Asia(20.00%). There are all about 1200-1500 people in our company.
2.How can we guarantee quality?
Always make a final Inspection before shipping.
3.What can you buy from us?
110kV-220kV Oil-immersed Power Transformer,Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.
4.Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 31 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L ,UL ,CE certificates and IEC, ANSI, KEMA, GOST standard.
5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese.

---
