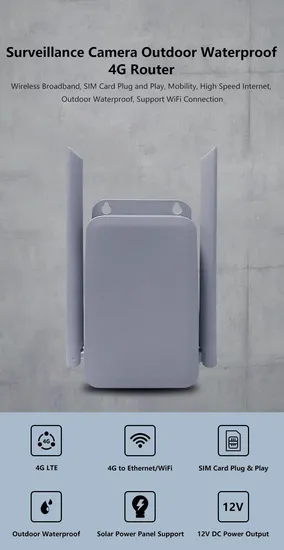

4G Network WiFi Industrial Grade Qualcomm Outdoor Router

Product Description

Key Features SIM Card Plug and Play, Auto Dial-up Internet Access. Standard RJ45 Network Port for Direct Use Supply 12VDC Power Interface For External Device Use Support 110V-240VAC Power Input Integrated External Antenna and Outdoor Rainproof Low Cost, Low Power Consumption, High Reliability. Product Description
This wireless router based on 4G cellular communication and WIFI technology platform, supports wireless communication of FDD-LTE, TDD-LTE and WLAN through multiple network standards. It is designed for plug-and play wireless monitoring applications. In addition, the ComFi can also be widely used in various IoT front-end data capture and collection, as well as medium and high-speed data transmission unit (DTU) by typical interfaces directly connected to the control board to realize application solutions. The ComFi provides AC110~220V AC power input interface, DC12V power output interface, USB interface (built-in optional), SIM card socket interface (built-in), soft reset button (built-in), UART interface (built-in optional), 10M/100M Network RJ45 Interface.
Product Description- Product Features
Industrial Application Design
The uses a stable performance single chip has enterprise-level data communication processing capabilities, built-in 128MB system memory, Wi-Fi support 2.4GHz 802.11n wireless protocol. The product supports low power consumption modes, including sleep mode, scheduled online and offline mode and timer switch mode (only supported by special version). In addition, the product adopts a waterproof case, the protection level meets IP54 that provides a decent protection in an outdoor environment. It is especially suitable for industrial control field applications. The wide-voltage AC input design (AC110V~AC220V) and 12VDC power output design meet the needs of various industrial control fields.
Stable and Reliable
The adopts a built in watchdog design to ensure system stability and support long term stable operation. External network communication adopts a complete anti-drop mechanism to ensure that the data communication terminal is always online. In addition, it provides comprehensive interface protection such as built-in 1.5KV electromagnetic isolation protection for the Ethernet port, built-in reverse and overvoltage protection for the power interface, and lightning protection for the antenna interface.
Convenient and Easy to Use
The provides a standard Ethernet interface, which can be directly connected to an equipment via Ethernet port with a network cable. It also provides WIFI connection which can be directly connected to a wireless equipment. The device is an intelligent data terminal, which can enter to the data transmission state after power on. It is convenient and flexible to use. It supports multiple working modes and is convenient for system configuration and maintenance.
Device Interfaces

Item	Description	Remark
Power Interface	Input: AC110~220V, Output 12V/2A
USB Interface	USB 2.0 Interface x 1	Built-in Terminal (Optional)
USIM Interface	1.8V/3.0V Nano USIM/SIM Card
Ethernet Interface	RJ45 Port, 10/100 Auto Adaptive, LAN/WAN Configurable
UART Interface	UART Interface x 1	Built-in terminal (Optional)
Reset Button	Long hold 3sec above to reset to factory default setting
LED Indicators	Power On / WIFI Status x 1, Cellular Connection Status x 1	Internal

4G/3G/2G Technical Specifications

Item	Description
Cellular Technology	LTE FDD, LTE-TDD, WCDMA, TD-SCDMA, EDGE, GPRS, GSM
Data Rate	LTE-FDD: Max 150Mbps DL / Max 50Mbps UL
	LTE-TDD: Max 130Mbps DL / Max 35Mbps UL
	WCDMA: Max 21Mbps DL / Max 5.76Mbps UL
	TD-SCDMA: Max 4.2Mbps DL / Max 2.2Mbps UL
	EDGE: Max 236.8Kbps DL / Max 118Kbps UL
	GPRS: Max 85.6Kbps DL / Max 85.6Kbps UL
	GSM: Max 9.6Kbps DL / Max 2.7Kbps UL
Rx Sensitivity	Compliance with 3GPP Release 9 Standard
Tx Output Power (Max)	LTE-FDD: 23dBm±2dB
	LTE-TDD: 23dBm±2dB
	WCDMA: 24dBm±1dB/-3dB
	TD-SCDMA: 24dBm±1dB/-3dB
	GSM: B5/B8: +33±2dB (Power Class 4)
	GSM: B2/B3: +30±2dB (Power Class 1)
Antenna Type	External Antenna
Antenna Gain	5dBi
Cellular Band/Frequency (Europe version)
Standards	Bands
4G LTE-FDD	B1, B2, B3, B5, B7, B8, B20
4G LTE-TDD	B38, B39, B40, B41
TD-SCDMA	B34, B39
WCDMA	B1, B2, B5, B8
GSM	850, 900, 1800, 1900 (Quad-Band)
Cellular Band/Frequency (Pacific version)
Standards	Bands
4G LTE-FDD	B1, B2, B3, B5, B7, B8, B28(A+B)
4G LTE-TDD	B38, B39, B40, B41
TD-SCDMA	B34, B39
WCDMA	B1, B2, B5, B8
GSM	850, 900, 1800, 1900 (Quad-Band)
Cellular Band/Frequency (China version)
Standards	Bands
4G LTE-FDD	B1, B3, B5, B8
4G LTE-TDD	B38, B39, B40, B41
TD-SCDMA	B34, B39
WCDMA	B1, B8
GSM	900, 1800

Environmental Specifications

Item	Description
Operating Temperature	-20 °C ~ +70 °C
Storage Temperature	-40 °C ~ +85 °C
Operating Humidity	5% ~ 95%

Device Access Information

Item	Default Value
Default IP Address	192.168.100.1
Default Login ID	admin
Default Login Password	admin
Default WIFI Password	1234567890

---
