US$300,000.00-350,000.00
|
1 Set
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Export Package or by Customer′s Requirement
Specification
CE, SGS, ISO9001
Production Capacity
50sets/Year
Product Description
Product Description
3000L Three layer blow molding machine.
1.Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy.
2.Adopt progressive hydraulic system by ourselves,easy to control.
3.Adopt inverter to control the clamping system,saving a lot of energy.
4.The technology of DIe Head is the same with Germany.
5.Configuration:
PARISION CONTROL THINCKNESS CONTROL | MOOG | JAPAN |
PLC | SEIMENS | GERMANY |
TEMPERATURE CONTROL MODULE | SEIMENS | GERMANY |
SERVO VALVE & SERVO TRANSDUCER | MIRAN | ITALY |
INVERTER | SEIMENS | GERMANY |
HYDRAULIC OIL SEAL | DZ | TAIWAN |
INTERMEDIATE RELAY | OMRON | JAPAN |
PNEUMATIC VALVE | AIRTECH | TAIWAN |
HYDRAULIC PUMP & VALVE | YUKEN | JAPAN |
PNEUMATIC SWITCH & CONTACTOR | SEIMENS | GERMANY |
HYDRAULIC MOTOR & SCREW MOTOR | SEIMENS | GERMANY |
REDUCER | GUOMAO | CHINA |
6.Specification
No | | specifications | 3000 Liter |
| | Model No. | 3 layers |
| | Processing material | HDPE/HMWHDPE |
1 | Extruders | Gear Box Type | Hard Surface |
Extruder Drive Motor(Inter) | 75KW |
Extruder Drive Motor(Middle) | 75KW |
Extruder Drive Motor(Outer) | 75KW |
Heating Load | 110KW |
Max Screw Speed | 60RPM |
2 | Accumulator Die Head | Pusher Cylinder | ∮560X400mm |
Heating Load | 90KW |
Parison Control Cylinder | ∮530X50mm |
Die-Core size[Min/Max] | ∮300-700mm |
Max. Parison weight | 80KG |
3 | Molding Clamping Unit | Clamping Platen Size | 2100X2200mm |
Max Mold Size | 1900X2300mm |
Mould Clamping Force | 2200KN |
Mould Thickness | 1000-2200 |
Clamping Pull Bar | 150mm |
4 | Hydraulic System | Hydraulic Drive motor(Main) | 45KW |
Hydraulic Drive motor(Parison Control) | 7.5KW |
Oil Tank Capacity | 1200L |
5 | Gripper | Gripped Stroke | 350mm |
Discharge Stroke | 2400mm |
6 | Hopper Loader | Loader | 800kg/H 3pcs |
Hopper | 50Kg 3pcs |
7 | Weight | | 65Ton |
8 | Size | | 12X4.5X7.2M |
9 | Total Power | | 350KW |
10 | Average power | | 250KW |

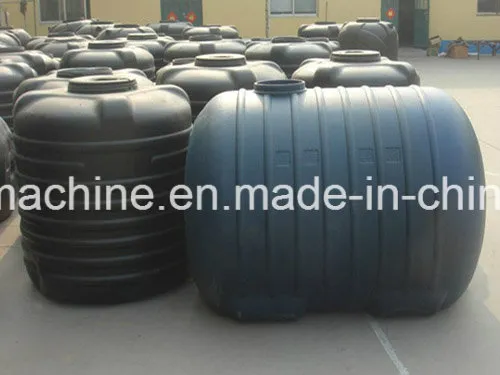

7.OUTPUT FOR 3000 L BLOW MOLDING MACHINE:
Commodity | Output | Unit | Weight | Unit |
1000 L Mould | 12 | PC/H | 18 | KG |
1500 L Mould | 9 | PC/H | 26 | KG |
2000 L Mould | 8 | PC/H | 36 | KG |
2500 L Mould | 7 | PC/H | 45 | KG |
3000 L Mould | 6 | PC/H | 54 | KG |
DELIVERY TIME
4 months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week,if the Buyer still needs the training,$50 should be paid for the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.And the Buyer should also pay for the air ticket for the engineer.
GUARANTEE
The guarantee time is one year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
>>
