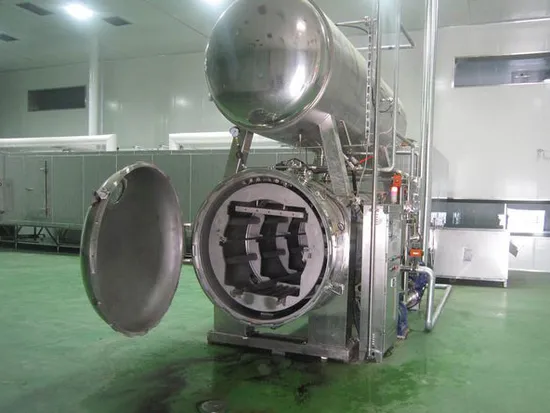

Stainless Steel Bottle Drinks Sterilization Pot

Product Description

Sterilization principle is the use of ultra-high pressure sterilization equipment EHV destroy mold, bacteria organization to maintain food freshness. Food sterilization process is absolutely no heat, add preservatives and other conventional sterilization methods, causing food and nutrition to reduce disadvantage flavor loss. As the state and people's increasing demands for food, processed food by ultra-high pressure equipment is increasingly favored by all walks of life.
EHV sterilization equipment in sealing technology is the key to the whole system is running, the company specializes in the accumulation of a large number of high-pressure technology, vital forces, combined with foreign materials and sealing technology, after several ongoing trial, the company EHV sealing techniques to form a standard, the company has been successfully sealed EHV equipment used in the test equipment, under pressure of 600MPa work very stable.

Item	Details
Equipment size(mm)	1700X1300X1800
Equipment weight (k g)	3000
Rated capacity(L)	2-5
Power Equipment(kw/h)	12
Start Power Equipment(v)	380V
Pressurization time(s)	180-280
Parts	touch-screen control system, cooling system, heating system, water treatment systems
Media device applications:	Low voltage control 46 # anti-wear hydraulic oil
High-pressure system	filtered local tap water

MODEL	TK-600/50L	TK-600/100L	TK-600/200L	TK-600/250L	TK-600/300L	TK-600/400L	TK-500/400L
MAX.PRESSURE	600MPa	600MPa	600MPa	600MPa	600MPa	600MPa	400MPa
MEDIA SUBSTANCE	Water	Water	Water	Water	Water	Water	Water
INNER SIZE	Dia:ø220mm Length:1500mm	Dia:ø260mm Length:2125mm	Dia:ø300mm Length:3030mm	Dia:ø300mm Length:3740mm	Dia:ø320mm Length:3930mm	Dia:ø360mm Length:4300mm	Dia:ø400mm Length:4400mm
DEVICE SIZE	4mX3mX2m (transition belt 6 m)	5mX3mX2m (transition belt 8 m)	5.5mX3mX2m (transition belt 10 m)	6mX3mX2m (transition belt 12 m)	6mX3mX2m (transition belt 12 m)	6.5mX3mX2m (transition belt 14 m)	7mX3mX2m (transition belt 15 m)
WIGHT	25tons	33tons	45tons	55tons	60tons	80tons	90tons
PRESSURIZATION TIME	3-5MIN	3-5MIN	3-5MIN	3-5MIN	3-5MIN	3-5MIN	3-5MIN
POWER	40KW	80KW	120KWW	160KW	160KW	240KW	240KW

---
