4.3 Inch TFT Monitor LCD 480 (RGB) X272 St7282 Drive IC Wide View TFT LCD Module

Product Description

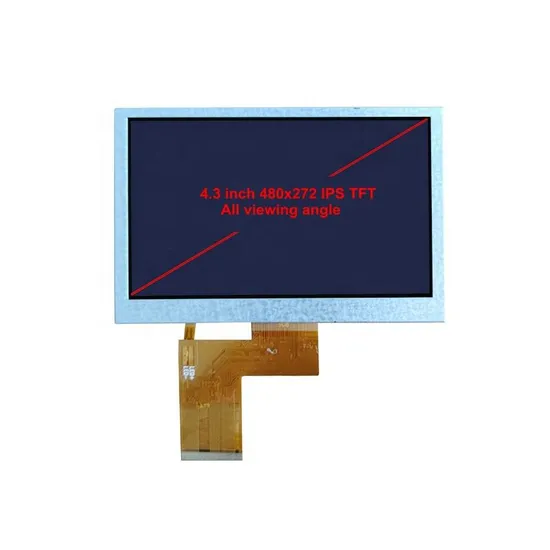

4.3 Inch tft monitor lcd 480(RGB) x272 ST7282 Drive IC wide view TFT LCD Module The C43H4505 is a 4.3 inch tft LCD display module with optional resistive touch screen and capacitive touch screen control with a resolution of 480×272 pixels. This size TFT LCD monitor is portrait mode, TFT panel adopts IPS panel, Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees (typical). Optional RTP or CTP.
This C43H4505 module has built-in ST7283 controller IC, supports RGB interface, the power supply voltage (VCC) range is 3.0V to 3.6V, the brightness is 500 nits (typ), and the contrast ratio is 800:1. This module is a white goods, Ideal for industries such as household appliances. The module can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°C
DRAWING
General Specifications

Item	Contents	Unit
Size	4.3	inch
LCM Dimension	105.5(W)* 67.2(H) * 2.9(T)	mm
LCD Active Area	95.04 * 53.86	mm
Number Of Dots	480×272	pixel
LCD Type	a-Si TFT
Viewing Direction	IPS
Driver IC	ST7283
Interface Type	RGB
Operating Temperature	-20ºC~ 70ºC
Storage Temperature	-30ºC~ 80ºC
Backlight Type	10 LEDs
Brightness	500	Cd/m2

Interface LCM PIN Definition

NO.	Symbol	Description
1	GND	Ground
2	GND	Ground
3	VDD	POWER SUPPLY(3.3V)
4	VDD	POWER SUPPLY(3.3V)
5-12	R0-R7	Red data input
13-20	G0-G7	Green data input
21-28	B0-B7	Blue data input
29	GND	Ground
30	PCLK	Clock signal
31	DISP	Display control
32	HSYNC	Horizontal sync signal
33	VSYNC	Vertical sync signal
34	DE	Data input enable
35	NC	Not Connect
36	GND	Ground
37	YU	Touch Panel Up
38	XL	Touch Panel Left
39	YD	Touch Panel Down
40	XR	Touch Panel Right
41	GND	Ground
42	LED_K	BACKLIGHT CATHODE
43	LED_A	BACKLIGHT ANODE
44	NC	Not Connect
45	NC	Not Connect
