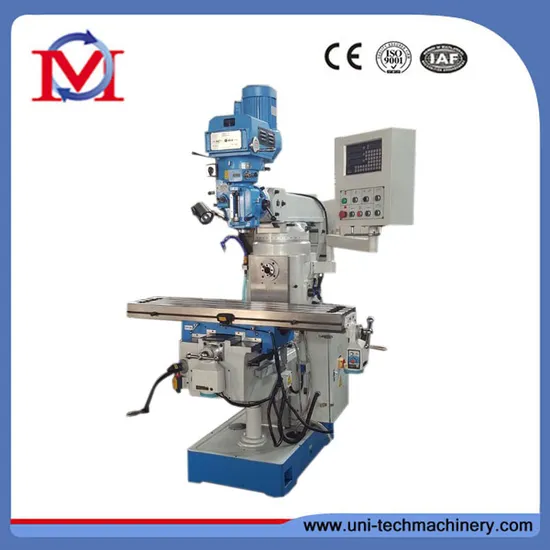

Vertical and Horizontal Universal Milling Machine (X6330W)

US$1.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6330W

Structure

Horizontal and Vertical

Milling Cutter Type

Other

Milling Cutter Structure

Other

Controlling Mode

Artificial

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Table Size

1370X305mm

Spindle Taper

R8(V);Nt80(H)

Spindle Speed

66-4540(V);40-1300(H)

Travel Longitudinal (X)

800mm

Trave Cross (Y)

380mm

Trave Vertical (Z)

360mm

Distance Spindle to Column

155-635mm

Arm Travel

500mm

Table Load

350kgs

Net Weight

1550kgs

Transport Package

Wooden Case, No Need Fumigation, Plastic Cover

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

Shandong, China

HS Code

84592900

Production Capacity

400PCS/Month

Product Description

Vertical and Horizontal universal milling machine (X6330W) Specification of our universal milling machine:

Specification	Unit	X6325W	X6330W
Table size	mm	1270X254	1370x305
T slot		3/16/65	3/16/65
Longitudinal travel	mm	750(850manually)	800
Cross travel	mm	400	380
Vertical travel	mm	400	360
Quill travel	mm	127	127
Spinedle and Column distance	mm	155-635	155-635
Spindle and table distance	mm	0-640	0-460
Arm travel	mm	400	500
Milling head tilting	degree	90(left right)45(front back)	90(left right)45(front back)
Spindle taper		R8(V);NT80(H)	R8(V);NT80(H)
Spindle speed	r/min	66-4540(V);40-1300(H)	66-4540(V);40-1300(H)
Spindle motor power	kw	2.2(V);3(H)	2.2(V);3(H)
Table load	kg	350	350
Overall size	mm	1750x1530x2340	1750x1650x2340
Net weight	kg	1380	1550

Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
Welcome to contact us!
Canthy Guo
Tengzhou Uni-tech Co. Ltd
Tel:0632-5810216 Fax: 0632-5810216
