Automatic Plastic Coffee Lid Cup Bowl Themoforming Machine, Lid Making Machine

Product Description

Sutiable Range:
PET, PS, PVC and other coil production, such as plastic cup cover, electronic tray, food hardware and other packaging products.
Features:
*PLC automatic control system, frequency control
*Human-machine interface operation
*More accurate feeding by servo motor
*High cutting precision, no burr
Product Made from Machine:
Main Technical Parameters:

Model		LB-450S-II
Speed		15-35 Modulus/min
Materials		PET, PVC, HIPS
Using Requirement	Total Power	6KW
	Clean Compressed Air	With 0.6-1.0Mpa Pressure
	Gas Consumption	>3m3/Min
Max Sheet Width		180mm
Max Forming Length		450mm
Max Forming Deepth		46mm
Dimensions		3200x1100x200mm
Overall Weight		1100KGS

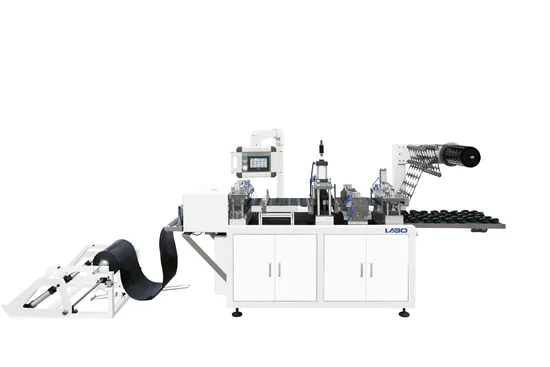

Machine Detailed Pic for Reference (Can do Customized Color):
Configuration:

Name	Model	Unit	Qty	Origin
Switching Power Supply	S-35-24	PCS	1	Taiwan
Relay Base	PYF08A-E	PCS	12	France Schneider
Mini Relay	MY2NJ/240VDC	PCS	10	France Schneider
Mini Relay	MY4NT/24V	PCS	1	France Schneider
Mini Relay	MY2NJ/220VAC	PCS	1	France Schneider
Wiring Terminal	JF5-6/5 40A	PCS	1	China
Wiring Terminal	JF5-25A	PCS	1	China
Wiring Terminal	JF5-10A	PCS	9	China
Encoder		PCS	1	SIKE
Photoelectric Switch	TYPE:E3-D4NK	PCS	2	China
Temperature Controller	XMTG-3400V	PCS	3	CHINT
Switch Button	XB2BA31C	PCS	1	CHINT
Switch Button	XB2BS54C	PCS	2	France Schneider
Transformer	BK-25VA	PCS	1	Great Wall
Servo		PCS	1	XINGJIE
Frequency	CHF100/1R5G/4	PCS	1	Denmark Danfoss
PLC		PCS	1	XINJIE
Module		PCS	1	XINJIE
Air-break Switch	DZ47-63/3 C40	PCS	1	RENMIN
Air-break Switch	DZ47-63/1 C16	PCS	2	RENMIN
Air-break Switch	DZ47-63/1 C25	PCS	1	RENMIN
Air-break Switch	DZ47-63/1 C6	PCS	1	RENMIN
AC Contactor		PCS	1	RENMIN
Solid-state Relay	SSR-25DA	PCS	2	HUANAN
Solid-state Relay	SSR-40DA	PCS	1	HUANAN

Packing and Loading Pic:

---
