6 Phase AC Universal Differential Vector Analyzer, Protection Tester, Electric Test Equipment

Product Description

Product introduction:

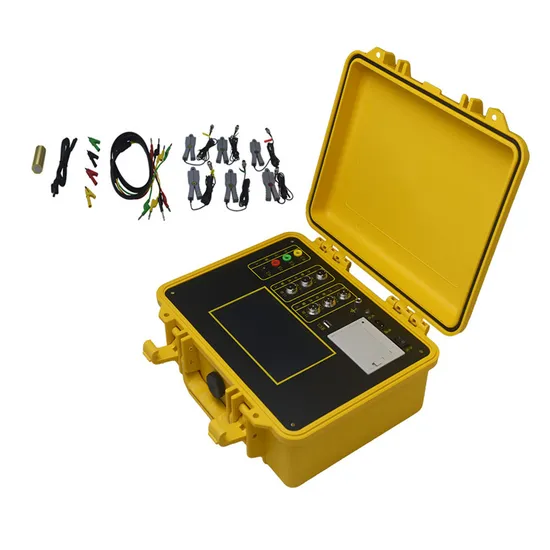

JH6301 Six Channel Differential Protection Vector Tester is a kind of instrument which can measure primary side current, secondary side current and secondary side voltage at the same time, and then make analysis and report. The instrument can analyze three-phase unbalance degree and hexagonal vector diagram by measuring primary side current, secondary side current and secondary side voltage, and can output word and Excel files without upper computer software, which is convenient for users Period processing report.The instrument adopts high-precision data acquisition chip, with analog 24 bit ADC precision, DSP processing data, arm and TFT touch screen, display measurement data intuitively and conveniently.
Product Features:
1. At the same time, measure 1 to 3 AC voltage at the secondary side
2. At the same time, measure 1 to 3 AC currents at the primary side
3. At the same time, measure 1 to 3 AC currents at the secondary side
4. Measure the phase between voltage, current and voltage and current (angle between primary side and secondary side current)
5. Display hexagonal vector diagram (mixed primary and secondary sides)
6. Measure grid frequency, active power, reactive power and apparent power, power factor, three-phase electric voltage and current unbalance detection
Technical parameters:
1. Working power supply: built-in 12.6V/2.2AH lithium battery
2. Voltage range: 1~500V 0.3%
3. Primary measuring current: 0.1~5A 0.3%
4. Secondary measurement current: 0.001~10A 0.3%
5. Active power: 0.001~5000W 0.5%
6. Reactive power: 0.001~5000VAR 0.5%
7. Apparent power: 0.001~5000VA 0.5%
8. Frequency: 45~65Hz 0.1%
9. Phase: 0~360 ° ± 1
10. Display: large screen color LCD

Model	JH6301
Working power supply	built-in 12.6V/2.2AH lithium battery
Voltage range	1~500V 0.3%
Secondary measurement current	0.001~10A 0.3%
Active power	0.001~5000W 0.5%
Reactive power	0.001~5000VAR 0.5%
Apparent power	0.001~5000VA 0.5%
Frequency	45~65Hz 0.1%
Phase	0~360 ° ± 2

FAQ
1. Is your company a sales company or a manufacturer?
Our company is an industrial and trade enterprise, with our own factory and lab, self-produced and self-sold. We were founded in 2013 and have 12 years of production experience, which has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time?
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is in well package with fast shipping.
4. What are the after-sales terms?
We offer free consulting service, 1 year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
6.Is customization supported?
We support customization in language use according to your requirement if the quantity ordered reaches.

---
