FK3-421P Compound Microscope Light Microscope Adjustable Detector Fiber Optic Microscope End-Face Triple Adjustable Multifunctional Fiber Inspection Scope

Product Description

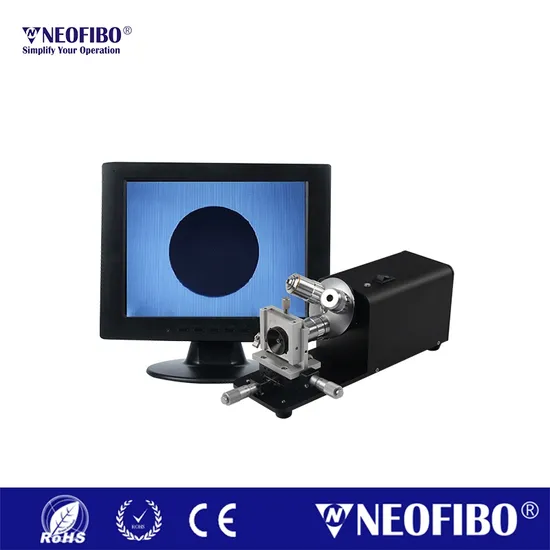

NEOFIBO FK3-421P Adjustable Multifunction Detector Fiber Optic Microscope Endface Inspection Scope
Neofibo : Your Reliable Supplier
Can provide you with reliable polishing solution 16-year Manufacturing Experience for OEM/ODM polishing programIndependent research and development patent - Neoholder®Products have CE, ROHS certification Support online video synchronization inspection machineEquipment test report and operation guide can be provided SGS certified factory, delivery speed and secure,50 units in stock30 days quality problems can be returned
Product Description
Description:1. Three kinds of magnification can be changed, such as 400/200/100 or 50 times optical magnification.
2. Accurate and efficient, the image is clear and vivid, saving time and reducing costs, with XY adjustable function: After changing the magnification or changing the adapter, if the fiber image is not in the center of the screen, you can fine-tune the XY axis and adjust the fiber image position at will At the same time, you can also check the details of any position of the ferrule, no longer limited to the area near the optical fiber. Click Here And View More >>>Go
To know more products, please check quick links below connected to our homepage. Feel free to contact us.

Fiber Polishing Machine	Fiber Polishing Fixture	Fiber Production Line Equipment	PM Fiber Alignment Systerm	Fiber Polishing Consumable
Fiber Cleaning Solution	Optical Power Meter	Fiber Tool	Fiber Optic Connectors and Apater	Indoor Cables

Helpful Links
For instant communication, please click hereFor our catalogs, please click hereFor our home page, please click here
If you can't find a fixture suitable for you, please contact the supplier, we have professional staff to provide you with services.
Product Parameters

Model	FK3-421P
Objective Lens Qty	3 pieces
Amplification	400X, 200X, 80X
CCD Area	1/3 inch
Focus Method	Manual
Power Consumption	5 W
Work Temperature	-10ºC to 40ºC
Scope Power Source	5V DC 1A
LCD Monitor	9.7" HD / 12V DC
Resolution	1024*768 ppi
Dimensions	32x28x32
Weight:	4.5 kgs
Standard Configuration	Inspection Scope, 10" LCD monitor, 1.25mm universal adapter, 2.50mm universal adapter, DC Power Cable, BNC data Cable
Optional Configuration	MT Ferrule Adapter, MPO Connector Adapter SMA905 Adapter SC APC connector adapter FC APC connector adapter LC APC connector adapter

Click Here And View More >>>Go
Application
Adapted Connector:
FC/SC/LC/MT/MTRJ supporting UPCFC/SC/LC/MT/MPO supporting APC
SMA905/MTRJ supporting Ferrule Company Profile
Shenzhen Neofibo Technology Limited.We have 16 years experience.could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.
FAQ
1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn't be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
4.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese Please contact us if you have any questions or needs.

---
