High speed carbon brush slip ring for inspection equipment

Product Description

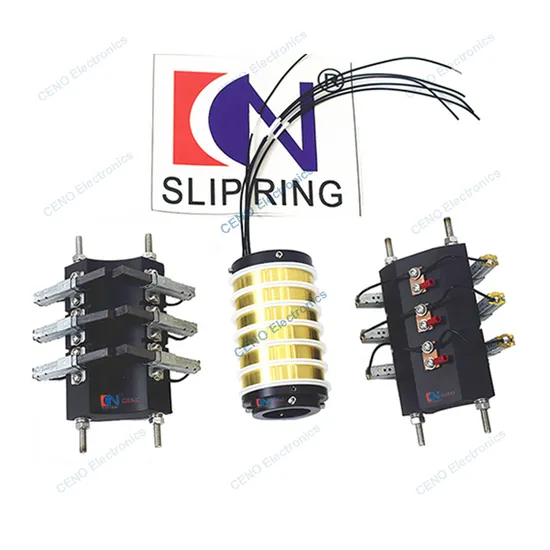

SCN-C-035-06P2 is a high speed carbon brush slip ring from CENO company. This high speed slip ring transmit power and signals stably with the speed of 5000rpm, the operation speed can be designed up to 10000rpm as different application scenarios and optional. There are 6 circuits for 10A power with the rating voltage 415VAC. Due to it's low torque, low consumption, high stable performance and long service life, it mainly used on the Automatic machine or Test facilities and instruments, such as High-speed train detect equipment, Eddy current testing machinery, or Non-destructive detector etc.
Features With high speed 5000rpm Use dedicated technology Transmit power / signals stably Compact structure light weight Low loss factor long service life Applications Automatic machine Inspection equipment High-speed train detect Eddy current testing Non-destructive detector Optional Circuit number & Current Working speed Protection grade Contact material Boundary dimension
Product Parameters

SCN-C-035-06P2	Specification
Current & Circuits	6 circuits * 10A
Rating Voltage	415VAC
Dielectric strength	≥1500VAC@50Hz (P)
Isolation resistance	≥500MQ@500VDC
Lead wire length	As customized
Operating speed	0~5000rpm
Contact material	Copper graphite
Working temperature	-20°C~+60°C
Working humidity	60% below
IP protection grade	IP51
Inner diameter	Ø35mm
Lead wire size	As customized
Install way	The Rotor installed on the spindle by screws
Service life	8395h

Outline drawing
