Product Details
Product Description
Product Description
Why buy from us?
1. We are one of the largest manufacturers & exporters of oil purifier in China
2. We have more than 10 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied!
What can this machine do for you?
1. Removes water, trace water from oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability

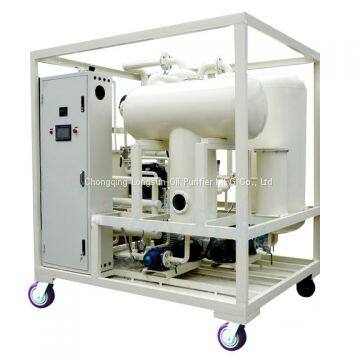

Transformer Oil Filter Machine, insulating oil filtration, DIELECTRIC Oil Filtering System
is mainly used for purifying the insulating oil in all kinds of large power equipments that are above 110KV especially for the area, where height is over 500 meters.
Feature
1. High vacuum: High point-Vacuum
2. High absorption speed: Absorption speed power>=333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
4. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
5. Distinctive remove impurities system filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
6. Especially applied to vacuum oiling and drying for power transmission equipments that are over 110KV
7. Can be operated both on-load and off-load.
Advantage
Comparing with the single-stage vacuum oil purifier, this machine dewaters, degases and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.
Parameters
| Unit
| ZYD-30
| ZYD-50
| ZYD-100
| ZYD-150
| ZYD-200
| ZYD-250
| ZYD-300
|
Flow Rate
| L/H
| 1800
| 3000
| 6000
| 9000
| 12000
| 15000
| 18000
|
Working Vacuum
| MPa
| -0.08 ～ -0.099
|
Working Pressure
| MPa
| ≤ 0.3
|
Temp Range
| ℃
| 20 ～ 80
|
Power Supply
|
| 380V/ 50Hz/ 3Phase( As per your requirement)
|
Working Noise
| Db
| 60 - 85 (Depended on the configurations)
|
Heating Power
| KW
| 30
| 30
| 48
| 72
| 72
| 90
| 120
|
Total Power
| KW
| 33
| 35
| 55
| 80
| 82
| 102
| 135
|
Inlet/Outlet Diam
| MM
| 25
| 32
| 42
| 50
| 50
| 60
| 60
|
Weight
| KG
| 450
| 550
| 750
| 950
| 1200
| 1850
| 2000
|
Size
| Length
| MM
| 1450
| 1450
| 1750
| 1850
| 1950
| 2050
| 2150
|
Width
| MM
| 950
| 1000
| 1250
| 1300
| 1350
| 1400
| 1450
|
Height
| MM
| 1700
| 1750
| 1950
| 2000
| 2050
| 2100
| 2150
|
AFTER TREATMENT
|
Dielectric Strength
| KV
| ≥ 70
|
Water Content
| PPM
| ≤ 5
|
Gas Content
| %
| ≤ 0.1
|
Particle Size
| μ
| ≤ 3
|
