Conventional Push Station Emergency Button Manual Call Point

Product Description

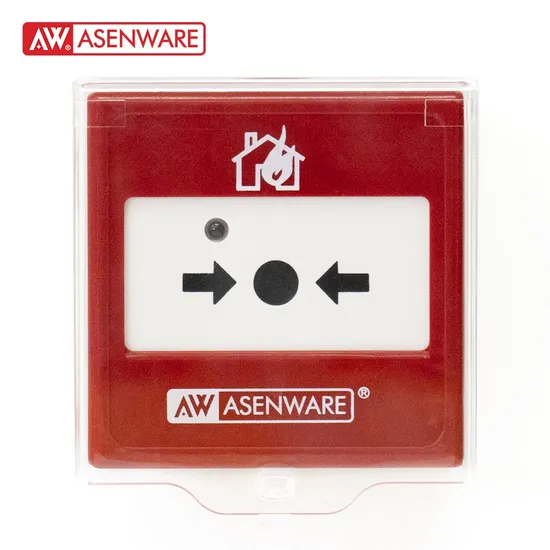

Product Description AW-D135C Manual Call Point
The AW-D135C conventional manual call point is designed to be use with an intelligent two-wire control system. If it is pressed after a fire is manually confirmed, an alarm signal will be sent to a fire alarm control system, after receiving the alarm signal, display the equipment status of the manual call points. When the manual call point is operating normally, the red indicator will flash; when there is a fire alarm, it will remain lighting. Parameter

Model NO.	AW-D135C
Main Voltage	24V or 12V
Operate Current	monitoring current<20uA
Wiring	2 wire
Protection class	IP30
Mating Panel	conventional fire alarm panel 2166
Size	99mm* 92mm* 66mm(with cover)

Our Services
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
Packing and delivery
Company profile
Asenware, manufacturer of fire alarm and fire suppression system since 2005.
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:
1. Addressable fire alarm system(FP100 series,FP300series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
7.Wireless conventional and addressable fire alarm system
