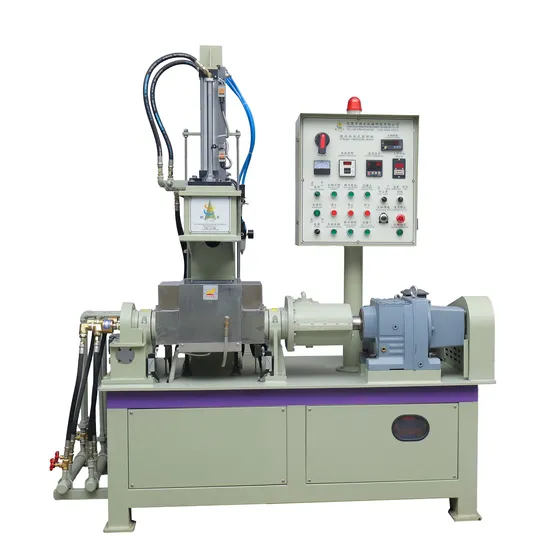

CF-10/15L Hydraulic Type Internal Mixer Machine for Rubber Natural Dispersion Kneader

Product Description

CF lab Kneader Size	CF-1L	CF-2L	CF-3L	CF-5L	CF-10L	CF-15L
Production rates in kg/batch
Output per batch	1-1.5kg	2-3kg	3-4kg	4-5kg	9-10kg	13-15kg
Applicable materials	Suitable for to mix the rubber and plastic raw materials.
*All rates should be factory verified.

CF lab Kneader size		CF-1L	CF-2L	CF-3L	CF-5L	CF-10L	CF-15L
Air Compressor Pressure	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Power	kW	4	5.5	7.5	11	18.5	22
Max. rotor speed	RPM	40	40	40	40	40	40
Tilter Motor	kW	0.75	0.75	0.75	0.75	1.5	1.5
Tilter Angle		110	110	110	110	110	110
Heating	W	700	800	1200	1800	1900	2100
Overall weight	KG	800	1000	1100	1400	2500	2600
Length	mm	1400	1600	1800	2000	2400	2400
Width	mm	800	800	850	950	1250	1250
Height	mm	2000	2000	2050	2170	2350	2350
*All rates should be factory verifed

Anti-Leakage Technology CFine's unique anti-leakage device:
CFine's unique anti-powder leakage device adopts mechanical shaft sealing compression technology and is sealed with self-lubricating sealing ring, so that the sealing ring is always in the state of compression sealing during the mixing process. The self-lubricating sealing ring can reduce the wear and tear of the kneading system and effectively reduce powder leakage and noise.

After-sales service In-sale
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the latest progress.
After-sales
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic, rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people. We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation. Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!

---
