CNC Lathe Machine of Smac Brand (CJK6140)

Product Description

Products Description

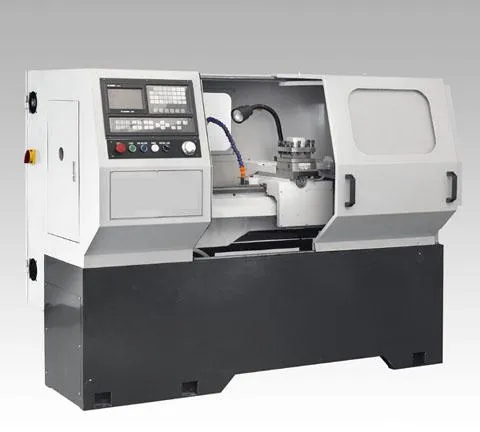

CNC Lathe machine (CJK6140H)
With 4-station or 6-station turrel and protection cover, These series economic type CJK6140H/50H/66H CNC lathes are available for different needs of customers, and convient to open and close for ensuring operators' safety. The lathe has 4 types (750, 1000, 1500 and 2000). Also with FANUC 0I-TC FANUC 0I Mate-TC 21T Huazhong, SINUMERIK802D, DASEN 3I, GSK980T Guangzhou, etc. CNC systems, these lathes are capable of turning internal and external cylinders, cones, arc and curved surfaces, ends, and inch or metric threading as well. They are available for various middle or small batch production, and their excellent features can be further showed in machining complex and high accurate work.

SPECIFICATIONS		UNIT	CJK6140H	CJK6150H
Capacity	Swing over bed	mm	Φ400	Φ500
	Swing over carriage	mm	Φ200	Φ280
	Max. turning diameter	mm	Φ400/Φ400*	Φ500/Φ400*
	Max. turning length	mm	750/700*1000/950* 1500/1450*2000/1950*
	Max. part length	mm	530/480* 780/730* 1280/1230* 1780/1730*
Spindle	Spindle bore diameter	mm	Φ52	Φ52/Φ82/Φ105
	Type of spindle nose	no	Φ52 boreISO 702/III NO.6 bayonet lock Φ82Φ105 boreISO 702/II NO.8 cam-lock type
	Spindle speed range	rpm	21 steps 11-1600 12 steps 36-1600 (Φ105 bore)
	Spindle motor power	KW	7.5
Tailstock	Tailstock quill diameter	mm	Φ75
	Tailstock quill travel	mm	150
	Tailstock quill taper	MT	5
Turret	Number of tool stations	no	4
	Tool O.D. size	mm	25X25
Feed	X-Z axis travel	mm	X:275;Z:650/900/1400/1900
	Rapid traverse rate (X/Z)	mpm	6/12
Others	Dimension (LXWXH)	mm	2250/2500/3000/3500X1370X1690
	Packing dimension (LXWXH)	mm	2550/2800/3300/3800X1920X2200
	Machine net weight		2050/2100/2150/2200	2100/2150/2200/2260

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
