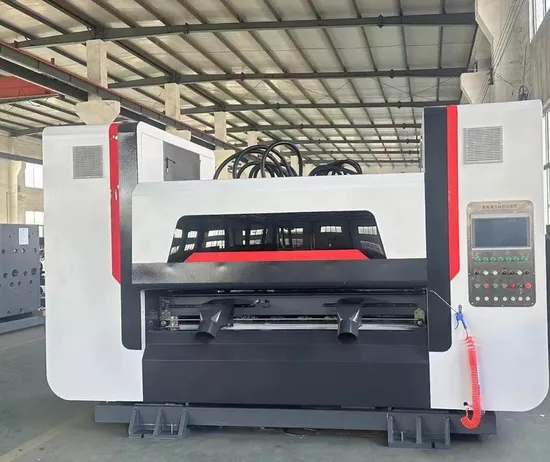

Corrugated Cardboard Computer Servo Type Thin Blade Slitter Scorer Online

Product Description

corrugated cardboard computer servo type thin blade slitter scorer online type
Product Description
★The upper and lower computer system consists of high-quality industrial computers and high-performance programmable controllers. ★High precision linear guide guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the slitting line. ★It can store multiple orders, and can change orders automatically or manually without stopping. ★Automatically track the speed of production line to ensure synchronization with it. It can be connected with production management system and has strong compatibility. ★Change orders quickly, when two machines are used together, it can be realized to change orders without stopping. ★With thin tungsten steel blade, the blade is sharp and has a service life of more than 8 million meters. ★Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance. ★Three types of wire pressing are selected: convex-to-concave (three-layer plate), convex-to-concave (five-layer plate), convex-to-flat, and three types of wire pressing electric conversion. ★The front and back two rows of pressure wire wheel are arranged to realize zero scorer. ★Line pressing depth has automatic control, good line shape, easy to shape. ★The machine moves left and right for correct an error. Product Parameters

Model	1800	2200	2500
Efficient width	1850mm	2250mm	2550
Min. slitting width	135mm
Min. creasing width	0mm
Blade model	Φ260*158*1.3mm
Creasing roller model	(up)φ238mm(down)φ130mm
Changing order time (servo type)	1-4s
Correction range	±100mm
Precision	±0.5mm
QTY of blade/scorer	5/8	6/10	7/12
Power	16kw	20kw	21kw
Boundary dimension	3840*1720*2450mm	4240*1720*2450mm	4540*1720*2450mm
Depth of creasing	12mm
Design speed	250m/min

FAQ Q: Are you a factory or a trading company?A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you'd like an online factory tour.Q: How do you ensure your quality?A: 1. Trustworthy and long-term cooperative raw material suppliers;2. Skilled&experienced engineer&workers;3. Mature QC system;4. Specially-assigned merchandiser;5. Advanced production workshop.Q: How about your after-sale service?A: 1. Special after-sale team will be 24/7 online;2. Can guide the installation door-to-door;3. One-year warranty for spare parts.

---
