Servo Energy Saving Imm Injection Moulding Machine with Low Price

Product Description

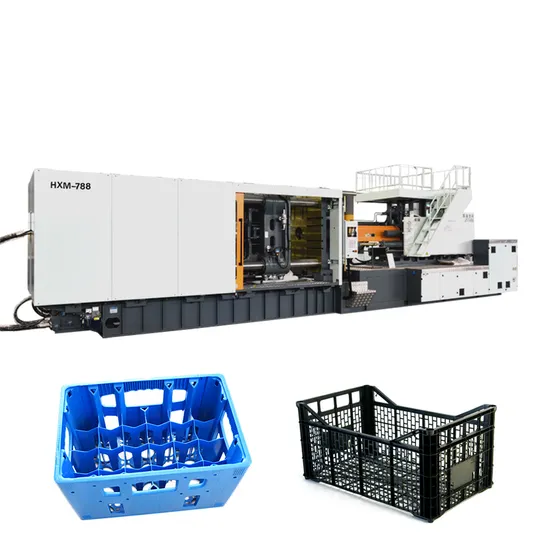

1.Picture
2. Specifications

MODEL: HXM788
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	95	100	105
	SCREW L/D RATIO	L/D	22	21	20
	INJECTION CAPACITY IN THEORY	cm3	3849	4264	4701
	INJECTION WEIGHT(PS)	g	3502	3880	4278
		oz	123.5	136.8	150.8
	INJECTION PRESSURE	MPa	191	173	157
	INJECTION RATE	g/s	608	674	743
	PLASTICIZING CAPACITY	g/s	85	90	98
	SCREW SPEED	rpm	110
CLAMPING UNIT	CLAMPING FORCE	KN	7880
	MOVING MOULD-PLATE STROKE	mm	1120
	MAX. MOULD HEIGHT	mm	1050
	MIN. MOULD HEIGHT	mm	400
	SPACE BWTWEEN TIE-BARS (W*H)	mm	1070*1020
	HYDRAULIC EJECTOR FORCE	KN	227
	HYDRAULIC EJECTOR STROKE	mm	300
	EJECTOR NUMBER	n	31
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	40+40
	HEATING CAPACITY	KW	48.8
	MACHINE DIMENSION (L*W*H)	m	12.18*2.40*2.74
	MACHINE WEIGHT	t	42
	OIL TANK CAPACITY	L	1315

3. Advantage
a. SUPER ENERGY SAVING
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor willreduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. HIGH PRECISION AND HIGH STABILITY
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. HIGH RESPONSE AND HIGH EFFICIENCY
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
4. Product Produced by Injection Molding Machine
5. Factory
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
6. Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.

---
