Plastic PVC Cable Granulating Machine

Product Description

plastic pvc cable granulating machine, The material can be a polymer mixed with PVC, some PE, some Rubber, recycling and blending and modification, functional parent granule(black carbon granule, flame-retardant granule, degradable granule, double protective granule), various cable, special material(EVA, flurin rubber, TPR sole material, UV protection material), reactive and extruding, powder coating.
Working Principle
First Crush the cable with crusher, to crush the cable into small pieces, then you can send these small pieces material into our extruder directly, with the first single screw extruder and material come into the send twin screw extruder, so some PE, some rubber mixer in it also can prodcue
The advantages of this machine
1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. High capacity: the capacity of the machine is about 80kg/h, we can do the machine up to 1000kg/h
5. The machine wih long life.
Line components

Item NO.	Item name	Quantity	Power
1	Single screw feeder	1set	2.2kW
2	TSSK75/36 twin screw extruder	1set	90kW
3	Φ180/10 Single screw extruder	1 set	55kw
4	Screen changer system	1 set	2.2kW
5	Wind-cooling hot surface cutter	1 set	2.2kw
6	The first wind transmission system	1set	4kw
7	cyclone separator	1 set	---
8	Wind-cooling vibrator	1 set	0.27X2kW
9	The second wind transmission system	1set	4kw
10	Silo	1 set	----
11	Electric cabinet	1 set	_

More machine photoes

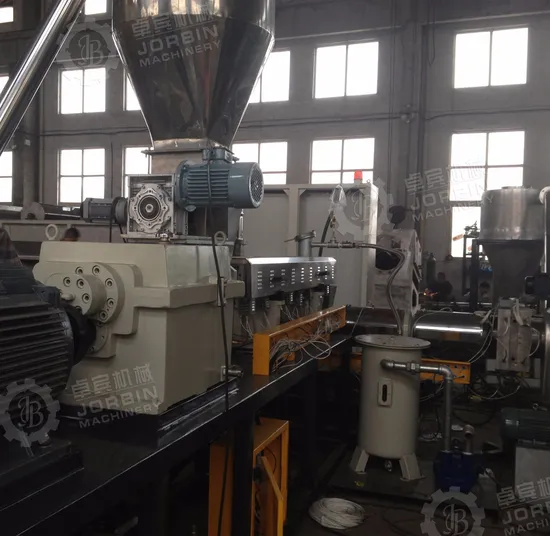

Machine line
Material come from the first stage twin screw into the second single screw extruder
Second stage single screw extruder
Wind cooling pelletizing die
Material produce by this machine
If you need more details of this kind of machine kindly contact me, I can send you more detail photoes and vedios.
1. We supply below necessary documents with the machine:
Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468

---
