Product Description
Product Description

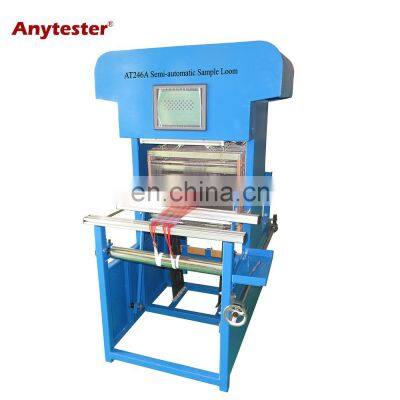

Product DescriptionAT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.Specification Model AT246A Shedding Method Dobby Reed width 16inch or 20inch No. of heald frame 16 (20 optional) Let-off Manual Shedding Pneumatic & PLC control Color selection Manual Beat-up Manual Take-up Manual Air pressure 0.45~0.8Mpa Air consumption Max. 200L/min Power A220V 50Hz, single-phase Dimensions 1300×980×1510mm (L×W×H) Weight Approx.200kg★ PLC control touch screen with 2G memory capacity to store designed patterns; ★ Designable and editable patterns and USB interface to share designed patters; ★ Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;★ Outer surface treated by baking varnish, good brightness and nice appearance;★ Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;★ With illuminating lamps; ★ Stable operation, low noise and high reliability;Detailed ImagesWorking InterfaceHeald FramesSheddingWoven Fabric SamplePacking & Delivery Packaging Size(cm) 130(L) * 98(W) * 151(D) Weight 200Kg Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Related Products AT241C Automatic Single Yarn Warping Machine AT241B Small Sample Warping Machine AT247 Automatic Air-Jet Sample Loom AT248 Automatic Rapier Sample LoomPayment Payment Item T/T EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF L/C L/C amount above 50,000 usd, we can accept L/C at sight West Union Amount lower than 50,000usd Delivery Time 7~10 days after receiving payment for one containerContacting Us ERIC QIN Website Mobile Phone +86 188 5510 5986 Whatsapp +86 188 5510 5986 Skype eric-qlk Wechat +86 188 5510 5986Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
>>
