China Swiss Customized Automatic Lathe Swiss Tool Equipment Swiss CNC Turning Machine (BL-CSL205/265)

Product Description

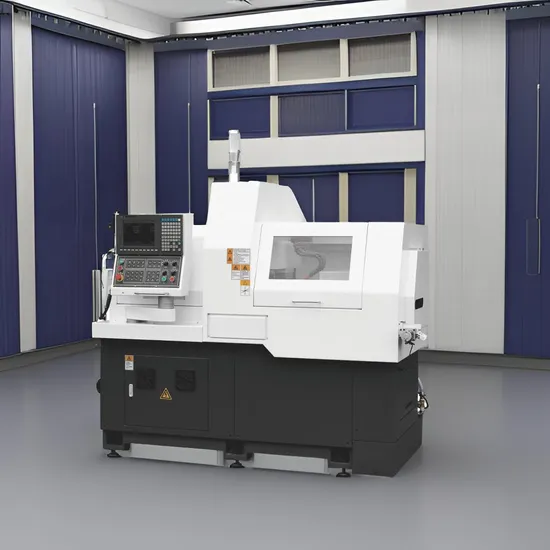

SWISS-TYPE AUTOMATIC LATHE CSL PRECISE SERIES
BL-CSL205/265
TAIWAN technology, dual spindle,5 axes
- Dual spindle,total 5 axes
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
- Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining

Item		Unit	BL-CSL205	BL-CSL265
Max. machineable bar dia.		mm	Φ20	Φ25
Main spindle bore		mm	Φ25	Φ27
Max. machineable length	Fixed guide bushing	mm	200
	Rotary guide bushing	mm	180(one time feed)
	Guide bushless	mm	50
Max. face drilling dia.		mm	Φ10
Max. face tapping dia.		mm	M8
Main spindle max speed		rpm	8000
Main spindle motor		kw	4.2
Main spindle index		/	C axes(continuation)
Back spindle max speed		rpm	8000
Back spindle motor		kw	3.1
Back spindle index		/	C axes(continuation)
Radial type live tool max speed		rpm	5000
Rapid moving speed(X1/Y1/Z1/X2/Z2)		m/min	20/24/24/24/24
Repeat positioning accuracy		mm	≤0.003
O.D. tool		mm	6 position 12*12
Main spindle side axial drilling tool(fixed type)		mm	4 position ER16
Main spindle side radial type live tool		mm	2 position ER11+2 position ER16
Back spindle side back drilling tool(fixed type)		mm	4 position ER16
Coolant pump		kw	0.46
Overall size		mm	2300×1300×1750
N.W.		kg	2500	2600

Main parts list:

Item	Brand
CNC controller	TAIWAN-SYNTEC
Servo electro-spindle	TAIWAN
Servo motor&driver	TAIWAN-SYNTEC
Spindle encoder	TAIWAN-SYNTEC
Spindle bearing	JAPAN-NSK/NTN P4 class
Ball screw bearing	JAPAN-NSK/NACHI
Ball screw	TAIWAN HIWIN/JAPAN-THK
Linear guideway	TAIWAN HIWIN/JAPAN-THK
Lubrication system	JAPAN-HERG
Main electricity parts	FRANCE-SCHNEIDER
Pneumatic parts	TAWAN-AIRTAC
Lock nuts	TAIWAN-YINSH
Shaft coupling	GERMANY-KTR

Standard configuration:
- SYNTEC 220TB CNC controller
- Rotary guide bushing
- Dual spindle
- Parts catcher& convey belt
Optional configuration:
- High pressure coolant system
- Oil mist collection system
- Angular live tool
- Automatic chip conveyor
- Automatic bar feeder
