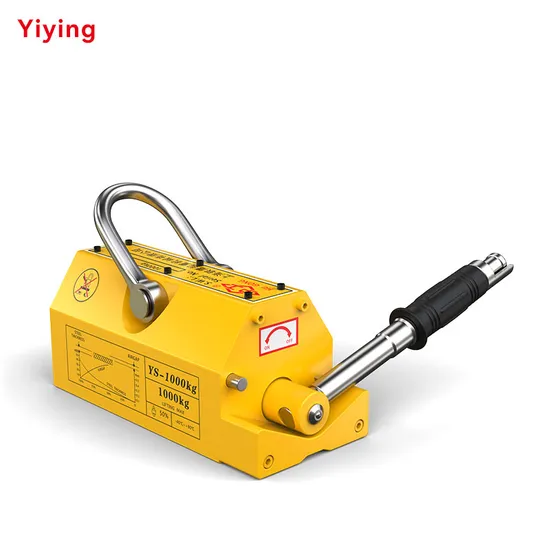

Pml 1000kg 3000kg 5000kg Permanent Magnet Magnetic Lifter

Product Description

PML 1000kg 3000kg 5000kg Permanent Magnet Lift Crane for Metal Scrap
Product Description

Models	Rated load Capacity(KG)	Maximum pull force(KG)	Size(KG)				NET weight(KG)
			L	B	H	R
HGY-100	100	300	90	63	68	145	2.7
HGY-200	200	600	69	73	190	181	4.45
HGY-400	400	1200	160	95	180	160	91
HGY-600	600	1800	220	115	125	230	192
HGY-1000	1000	3000	260	145	145	280	34
HGY-2000	2000	5000	340	160	165	410	68
HGY-3000	3000	7500	420	185	185	510	87
HGY-5000	5000	15000	580	300	300	650	198

Parts presentation of Round Steel Use Lifting Magnet Permanent Magnetic Lifter
specifications of Round Steel Use Lifting Magnet Permanent Magnetic Lifter Lifting weight:100kg,300kg,500kg,1000kg,2000kg,3000kg
pulling-out force:3 times,3.5 times
It is very easy to use the lifting magent, only need the operator manually switch the lock-on and block-off states.
Widely used in machining, mould producing industry.

Detailed Photos

Advantage of Round Steel Use Lifting Magnet Permanent Magnetic Lifter


1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.
2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.
3. Using high-performance permanent magnet, ensure the power and high safety.
4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.
5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.
6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.
7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.

Our Advantages

Usage and application of Round Steel Use Lifting Magnet Permanent Magnetic Lifter
:The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.
magnetic lifting parts

Package of Round Steel Use Lifting Magnet Permanent Magnetic Lifter

magnetic lifting application case Company Profile


Our company Shanghai Yiying Crane Machinery Co., Ltd. was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products. 1. Annual production in 5 million units production area 3600 square meters;
2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.
3. 120 production lines;
4. More than 500 employees;
5. Annual export value over 50 million RMB.
We have three factories, located in Huaian, Jiangsu, Chongqing and Baoding, Hebei.
The magnetic lifter workshop has complete equipment and is responsible for forging and spraying.
The factory has more than 100 workers and more than 3,000 orders per month.
Our company will hold outdoor activities for employees every month to enhance their teamwork and let employees work happily!
The company's team is expanding every year~
Certifications

Because of the good quality of the company's magnetic lifter, the magnetic lifter has obtained many certificates in the world, such as CE, SGS, etc.
In addition to the magnetic lifter, the company's electric hoist, manual hoist, manual pallet jack, and electric stacker have also obtained international certification, and their safety has been guaranteed!

---
