High Quality Farm Implement Disc Plough Disc Plow

US$400.00-1,000.00 5 Pieces (MOQ)

Basic Info.

Model NO.
1LYT
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Tractor
Arbor Configuration
Vertical Shaft
Color
Custom Made
Warranty
1 Year
Transport Package
Iron Frame
Specification
420kg
Trademark
LEYUAN
Origin
Shandong China
HS Code
84321000
Production Capacity
5000set /Year

Product Description

Product Description

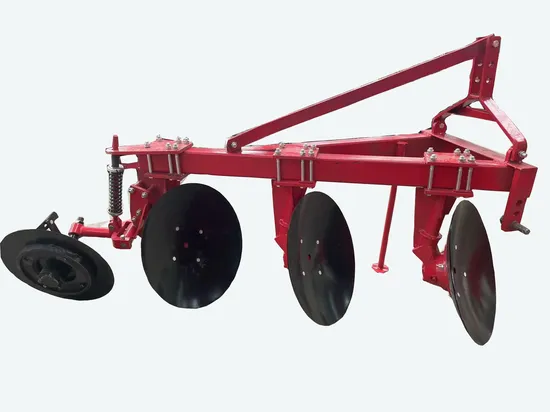

Disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation.. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc .
Product Parameters
Model 1LYQ-220 1LYQ-315 1LYQ-320
Width of cut (mm) 400 450 600
Depth of cut (mm) 200
Dia of disc (mm) 510 460 510
Q'ty of disc 2 3 3
Weight (kg) 140 160 190
Tractor power (hp) 18 25 25-40
Mounted cat Mounted Cat I

Model 1LY(T)-325 1LY(T)-425 1LY(T)-525 1LY(T)-625
Width of cut (mm) 750 1000 1250 1500
Depth of cut (mm) 250~300
Dia of disc (mm) 660
Q'ty of disc 3 4 5 6
Weight (kg) 420 490 565 640
Tractor power (hp) 50 90 120 160
Mounted cat Mounted Cat II
