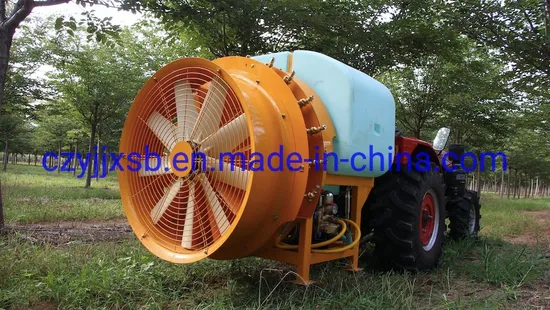

Trailer Mounted Type Orchard Insect Fogger Machine Tractor Mounted Type Orchard Air Blast Sprayer

US$3,000.00 1 Piece (MOQ)

Basic Info.

Power Source
Diesel
Matched Power
>30HP
Spray High
8m-9m
Spray Wide
16m,18m
Fan Diameter
800mm,900mm
Number of Nozzles
10-16
Pump
Diaphragm Pump
Transport Package
Naked
Specification
300L-500L
Trademark
Wincrops
Origin
China
HS Code
8424490000
Production Capacity
50000units/Year

Product Description

Product Description
Power Sprayer of Traction Power Boom Sprayer Suspension Type Tractor Trailed Sprayer
Tank Capacity:300L,400L,500L
Tractor Matched Power:30HP,40HP,50HP,60HP,70HP,80HP,90HP,100HP,110HP.
Spray Wide:16M,18M
Spray Height:8M,9M
Detailed Photos
Product Parameters
Model 3WF-360 3WF-500
Size(mm) 1330*1270*1310 1330*1270*1310
Tank Capacity 360L 500L
Matched Power >30HP >30HP
Drive Model PTO PTO
Spray Height >8M >8M
Spray Wide >18M >18M
Pump Plunger pump Plunger pump
Working flow 15-32L/min 15-32L/min
Fan Diameter 800mm 800mm
Input speed ≤540 ≤540
Spray control mode Sectional control/independently switchable Sectional control/independently switchable
Number of nozzles 12 12
Liquid medicine stirring Reflux stirring Reflux stirring
