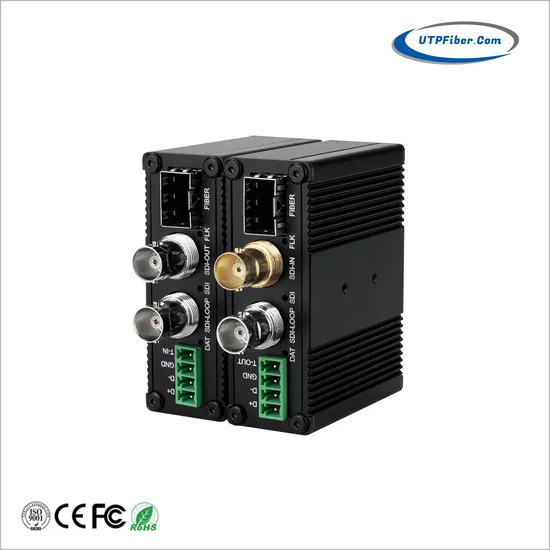

Product Description Mini HD SDI Fiber Extender 1080P HD-SDI Over Fiber Converter Broadcast Level SDI Video Optical Transceiver Single-Mode Single Fiber 20km with RS485 Tally and Loop Output
The UF-3GSDI-1V1T1D series 1-Channel 3G-SDI to Fiber Extender with Tally and RS485 kit is a compact power house that will allow any user to transport 1-Channel HD/3G-SDI standard high-definition video signal and 1-Channel reverse RS485 and 1-Channel Tally signal transmitted via single fiber optical cable. Furthermore, this 3G SDI over Fiber Kit of Transmitter and Receiver are used by pairs. This sturdy Fiber Extender creates an easy drop environment for users that require multiple 3G-SDI sources on one Fiber across any application. UTP Fiber has an excellent reputation as a Manufacturer of high quality and low-cost price products to help complete your project on time, in a loss free high-quality kit that will ensure you stay under budget. Our Fiber Optic Extender is Commonly used in security applications, live performance environments, video surveillance, SDI distribution and control in any environment. Our 1-Channel 3G SDI over Fiber Kit Unit supports 20km on a single mode fiber. This unit is an SDI over Fiber multiplexer and SDI over Fiber demultiplexer.
Features 1-Channel 3G/HD/SD-SDI video with Loop Out transmission over optic fiber Support 1Ch Backward RS485 and 1Ch Tally Built-in Optical Transceiver Module with Video Pathological Patterns Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards Automatic cable equalization to ensure signal integrity Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s Directly compatible with 3G/HD/SD-SDI camera systems CWDM technology to achieve multi-channel signal transmission Long transmission up to 20 km (12.5miles) Full digital non-compression broadcast level transmission Working temperature range (-20°C ~75°C) Detailed Photos
| Fiber index |
| Wavelength | 1470~1610nm |
| Rate | 3G bps |
| Tx power | >-6db |
| Rx sensitivity | >-14db |
| Fiber Core | 1-Core |
| Fiber connector | LC (default) |
| Video index |
| Signal type | DVB -ASI, SD-SDI, HD-SDI, 3G-SDI |
| Work standards | DVB-ASI , SMPTE259M-C, SMPTE292M, SMPTE424M |
| Bit rates | 270 Mbps, 1. 485 Gbps, 2. 97Gbps |
| Video input / output |
| Signal type | DVB-ASI, SD-SDI, HD-SDI, 3G-SDI digital video |
| Video Channel | 1-Channel |
| Input impedance | 75 Ohm |
| Enter the automatic cable equalization | >80m (1. 485 Gbps@BELDEN8281 cable) |
| Clock recovery | When 270 Mbps, 1. 485 Gbps, and 2. 97Gbps are automatic, the others are bypass |
| Input level | 800mVp-p±10% |
| Enter the echo loss | >10dB @ 2. 97 Gbps |
| Output DC offset | <±0. 5V |
| Output echo loss | >10dB @ 2. 97 Gbps |
| The biggest shake | <0. 1UI(1485Mbps) |
| Signal overshoot | <5% (1485Mbps) |
| Data |
| RS-485 | 1Ch Reverse RS-485 (D+, D-) |
| Max. 57600bps for RS485 |
| Tally | 1Ch Tally (T-A, T-B, T-C, T-D) |
| Connector | Industrial standard screw terminal |
| Equipment information |
| The shell metal | Aluminum alloy |
| Way to install | Wall-mounted |
| Dimensions (LxWxH): | 71 x 54 x 23 mm |
| Product net weight (unit: pair) | 0.75KG |
| Product weight (including the outer packaging) | 1.2KG |
| Power Input | 1 x Type-C 5V or 1 x DC12~56V |
| Power dissipation | <5W |
| Overload protection | support |
| Over current protection | support |
| LED Indicators: |
| PWR | Power Status |
| SDI | Video Status |
| DAT | Tally or RS485 Status |
| FLK | Fiber Link Status |
| Environmental |
| Operating temperature | -20°C ~75°C |
| Storage temperature | -40°C ~85°C |
| Relative humidity | From 5 to 95% (non-condensing) |
| Working life | > 100,000 hours |
| Regulatory Approvals |
| ISO9001 |
| CE, RoHS and FCC |
| Model | Description |
| UF-3GSDI-1V1T1D | Mini 3G-SDI Fiber Converter: 1Ch 3G-SDI Video with Loop output + 1Ch backward RS485 + 1Ch Tally, Single Mode, Single Fiber, LC Connector 20KM, including Transmitter and Receiver, used by pairs |
| UF-HDSDI-1V1T1D | Mini HD-SDI Fiber Converter: 1Ch 3G-SDI Video with Loop output + 1Ch backward RS485 + 1Ch Tally, Single Mode, Single Fiber, LC Connector 20KM, including Transmitter and Receiver, used by pairs |
| Mounting Options | Wall Mount Installation |
| Power Options | 1 x Type-C 5V or 1 x DC12~56V |
