China 6040 X-ray Baggage Scanner for Security Equipment Inspection with Best Wholesale Price

Product Description

Product Description

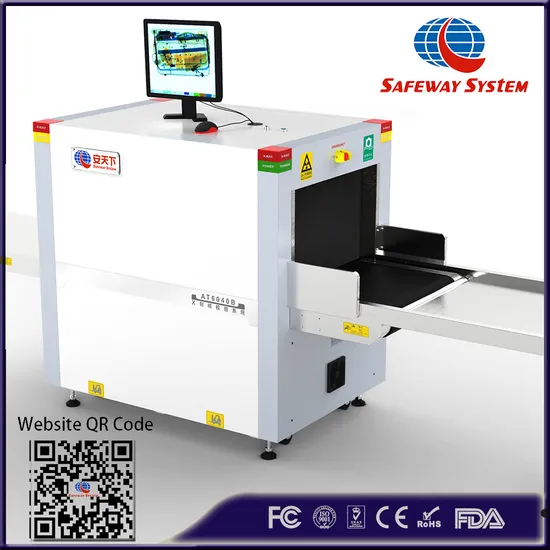

AT6040B High quality Dual Energy Security X-ray Machine and Baggage & Luggage Scanner -
Biggest Manufacturer with CE, FCC, FDA approved
AT6040B X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.

AT6040B belongs to the "X-Ray Baggage Scanner" product family, which are designed for the security inspection of the small baggage&parcels, suitcases and handbags etc.
It is specially developed for the overseas market and exportation, since 600*400 tunnel size is not needed in China market. It can be equipped with 140kv (AT6040) or 160kv(AT6040B).
It's widely used in the shopping malls, subways, schools, factories and other infrastructures.
Product highlights
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter
We have two different designs for your option, all with patent and copyrights reserved by Safeway System.

Product Parameters Technical Data

NO.	Item	Tested Value
1	Wire resolution	38	AWG
2	Penetration resolution	34	AWG
3	Spatial resolution	Vertical: 1.0 Horizontal: 1.0	mm
4	Penetration	38	mm
5	Organic matter resolution	1-120	mm
6	Grayscale, mixture resolution	1-60	mm
7	Inorganic resolution	0.2-14	mm
8	Effective material resolution	Compliant with GB15208.1-2018 standards
9	single dose	≤4.5	uSv(uGy)
10	leakage dose	<1	uSv/h(uGy/h)
11	noise level	No more than 60dB
12	conveyor belt speed	Around 0.2 m/s
13	Conveyor belt maximum load	150kg
14	Maximum power consumption	0.8kW
15	safety performance requirements	Compliant with GB15208.1-2018 standards
16	Electromagnetic Compatibility Requirements
17	Electrical Safety
18	Environmental adaptability
19	leakage current	No more than 5.0mA
20	film security	Compliant with ASA/ISO 1600 film safty standards
21	weight	455kg
22	Working environment temperature/relative humidity	5ºC~40ºC;0%~90%
23	Storage temperature/humidity	-20ºC~+60ºC/10%~90%
24	Atmospheric pressure	86kPa~106kPa
25	Working power	AC220V+10%~-15%,50Hz±3Hz
26	operating system	Windows XP. Win 7. Win 10 (optional)

Software functions

NO	Item	Functions
1	Calibration	With fault self-checking function, the corresponding fault information can be displayed when a fault occurs
2	Image Processing	With color/black and white, local increase, high penetration, low penetration, super increase, organic highlighting, inorganic highlighting, inverse color, brightening, darkening, gray sweeping, zooming, organic marking, suspicious object marking, edge enhancement processing functions
3	image pullback	30 checked images can be played back
4	Number of image storage	Can store 50,000 checked images
5	image management	With image information query, opening, exporting, printing and other functions; exportable6 image formats (XF, PNG, BMP, JPEG, TIFF, GIF)
6	Operator management	Operators can be added and deleted, and the operator name, group, password, enabling status can be modified, and the usage log can be exported.
7	Dangerous Image Insertion (TIP)	You can add and delete TIP insert pictures, you can set the TIP enable status,Injection interval, floating range, motion judgment time, stationary judgment time; the user can check the operator by recording the information
8	Device diagnosis	The key components of the equipment can be diagnosed through the diagnostic interface, including detectors, motor forward and reverse rotation, infrared sensors, special keyboards, etc.
9	system settings	Programmable keys, imaging display (horizontal/vertical mirroring, maximum magnification Multiples, display recovery), scanning mode settings (two-way, direction, strong scanning, energy saving), auxiliary inspection (impenetrable, explosives, drugs), luggage Set the counter function
10	System device information	display software version number, copyright, device model, factory number, scan Counting, power-on time, output time, image file storage capacity and other information
11	training function	Automatic outsourcing training for new learners

Key components

NO	Item	Details
1	X-ray generator	Anode voltage: 160kV, cooling method: sealed oil cooling
2	electric drum	DC
3	computer	CPU: Intel I3 3.3GHz Hard disk: 1T, memory: 4G
4	monitor	21.5-inch LCD monitor, resolution: 1920x1080
5	Console & Keyboard	no console table, with dedicated keyboard

Packaging accessories

NO	List	Q'TY(PCS)
1	AT6040B complete machine	1
2	User manual, warranty card + certificate, mouse pad, packing list, key, sticker	1
3	Dedicated keyboard and mouse	1
4	W/O console with monitor	1
5	extended table	1
6	power cable	1

Installation photo
