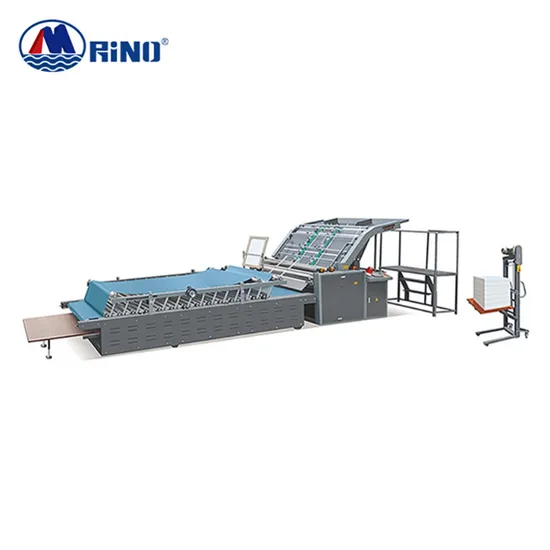

Paper Flute Laminating Machine Semi Automatic for Corrugated Cardboard

Product Description

Paper Flute Laminating Machine Semi Automatic For Corrugated CardboardProduct Description

Product description of flute laminating machine

This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient.
1. The top paper can pile up the height of 1.5m once time, it makes delivery more easier and efficient.
2. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking
3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.
4. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm
5. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;
6. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.
7. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick
Product Parameters

Product parameter of flute laminating machine

Model	HF-S1300	HF-S1400	HF-S1500	HF-S1600
Maximum size	1300×1100mm	1400×1250mm	1500×1250mm	1600×1250mm
Minimum size	360×360mm	360×360mm	360×360mm	360×360mm
Laminate precision	±1mm	±1mm	±1mm	±1mm
Speed	80/min	80/min	80/min	80/min
Total power	6kw	6kw	6.5kw	6.5kw
Overall dimension	8.8×1.95×1.5m	8.8×2.05×1.5m	8.8×2.15×1.5m	8.8×2.25×1.5m
Total weight	3t	3t	3.5t	3.5t

Product Details

Product details of flute laminating machine

Top paper feeding unit
Feeding paper manually by hands, curved or thick paper all can be feeding ,it makes delivery more easier and efficient,save time and labor.
Bottom feeding unit
The thickness of the belt is 8mm, which is more durable.motor controls the suction belt, the time is more punctual and the accuracy is higher.The transmitting belt has strong adaptability of corrugated paper.Gluing unit:
Using stainless steel anilox glue roller, never rust, after grinding the amount of glue keeps in the minimum to ensure uniform glue, lower roller is use water roller clean,more durable and cost saved.
Company Profile
FAQ1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:45-60days after get the payment
5.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
9.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
10.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery.
11. Q: Do you accept factory visiting?
A:We are highly greeting for your visiting.

---
