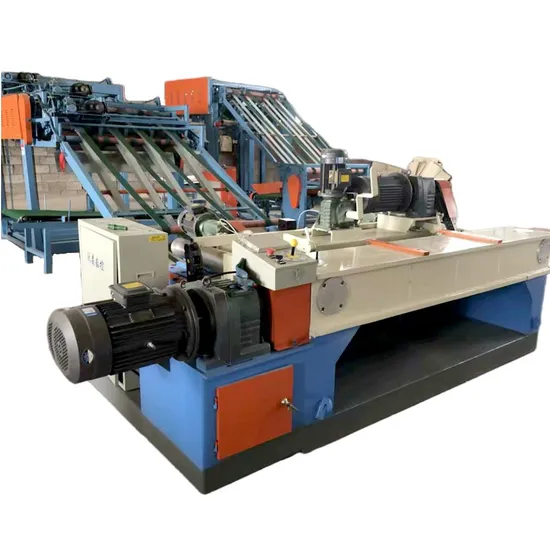

Plywood Machine 4FT/8FT Veneer Peeling Lathe

Product Description

Name: Veneer peeling machine

Brand	LANGBORDEN
Production	8FT Veneer Peeling Lathe
Model	ALVA-VP-8FT01	ALVA-VP-8FT02
Max. wood log length	2600MM	2600MM
Max. wood diameter	500MM	500MM
thickness of veneer peeling	0.5-2.6MM	0.35-5MM
Size of peeler blade	2700*180*16MM	2700*180*16MM
Size of cutting knife	2700*140*12.7MM	2700*140*12.7MM
Remaining core diameter	32-40MM	32-40MM
Single-double roller diameter and length	125MM/2700MM	125MM/2700MM
Screw diameter	90MM	90MM
Single roller motor power	2*7.5KW	2*7.5KW
Double roller motor power	2*7.5KWservo	2*7.5KWservo
Feeding motor power	11KW	11KW
Cutting knife motor power	5.5KW	5.5KW
Veneer conveyor motor power	2.2KW	2.2KW
Total power	48.7KW	48.7KW
Peeling speed	20-80MM	40-80MM
Weight	10500KGS	/
Overall dimension	6750*2000*1500	6750*2000*1500

Brand	LANGBORDEN
Production	4FT Veneer Peeling Lathe
Model	ALVA-VP-4FT01	ALVA-VP-4FT02	ALVA-VP-4FT03
Max. wood log length	1.4M	1.4M	1.4M
Max. wood diameter	0.6M	0.6M	0.6M
thickness of veneer peeling	1-3MM	1-3MM	1-3MM
Size of peeler blade	1500*180*16MM	1500*180*16MM	1500*180*16MM
Size of cutting knife	1400*140*12.7MM	1400*140*12.7MM	1400*140*12.7MM
Remaining core diameter	25-32MM	25-32MM	25-32MM
Single-double roller diameter and length	125/1500MM	125/1500MM	125/1500MM
Screw diameter	85MM	85MM	85MM
Single roller motor power	1*7.5KW	1*7.5KW	1*7.5KW
Double roller motor power	1*7.5KW	1*7.5KW	1*7.5KW
Feeding motor power	7.5KW	1.5KW	1.5KW
Cutting knife motor power	1.5KW	1.5KW	1.5KW
Veneer conveyor motor power	1.5KW	1.5KW	1.5KW
Total power	25.5KW	25.5KW	25.5KW
Voltage	380V/440V/415V/ Customized	380V/440V/415V/ Customized	380V/440V/415V/ Customized
linear speed of host machine	50M/MIN Not adjustable	40-80M/MIN Adjustable	40-80M/MIN Adjustable
Weight	3.5T	4T	4.5T
Overall dimension	4.4*2*1.6M	4.4*2*1.6M	4.4*2*1.6M

1 Langborden have 4ft and 8ft veneer peeling machine. The max cutting length is 1400mm,2600mm. the longer one need to special making.
2 The standard cutting diameter we can produce as your requirement.
3 Tthe standard veneer thickness is 0.35 to 5mm. the special thickness need to inform in advance.we also can produce.
4 The final veneer log is 25-40mm.
5 The machine can cut all kind of wood, soft and hard.
6 The machine body is heavy and treated by heat treatment.
7 We have the fast speed model , max produce speed is about 80m/min.

Packaging & Shipping
Our Advantages
* More than 20 years of production experience;* Good quality and Competitive price;* Any design requirement is absolutely welcome;* Price negotiable upon purchase of multiple items
Why Choose Us
We could offer a wide range of different types of glue thread and splicing machine for face veneers, constructional veneers or plywood core-layers.Due to more than 20 years experience we are able to fulfill your requirements regarding temperature, viscosity and tear strengths.We'll do our best to cooperate with you from the enquiry to order.
Company Profile
FoShan LangBorden Co., LTD, established in 1995More than 20 years experience. LANG BORDEN has invented the method of veneer splicing and has more than 20 years of experience in the production of glue threads ,veneer zig-zag splicing machine and veneer hand gluers. Today LANG BORDEN offers glue threads for all different applications. The threads are technically matching to the different production methods and heating systems of the any brand machines and are continuously being adapted to new developments in the machinery sector. Whatever problem you have to solve in veneer splicing we offer a wide range of different types of glue thread and splicing machine for face veneers, constructional veneers or plywood core-layers. Due to more than 20 years experience we are able to fulfill your requirements regarding temperature, viscosity and tear strengths of needed LANG BORDEN glue threads.
Contact details
Foshan Langbodun Plastic FactoryAdd: No.7,Industrial Zone 1, Yuebu Industrial Avenure, Lecong Town, Foshan,Guangdong, China.Contact: Jay Huang
FAQ
1. who are we?We are based in Guangdong, China, start from 2007,sell to Domestic Market(60.00%),Africa(10.00%),Eastern Europe(5.00%), South Asia(5.00%), Southern Europe(5.00%), Northern Europe(5.00%), Western Europe(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?(1)Veneer stitching machine,Veneer splicer sewing stitching machine,Veneer composer stitching machine(2)Glue thread,Veneer thread,Veneer adhesive(3)Heater(Therminal piston,Heating tube) for veneer gluing machine(4)Veneer peeling machine(5)Gantry horizonal log sawing(cutting)machine(6)Veneer finger jointing machine with a winding machie(7)Automatic longitudinal saw machine,Straight line rip saw machine(8)Woodworking machinery sanding machine/sander machine4. why should you buy from us not from other suppliers?More than 20 years experience. LANG BORDEN has invented the method of veneer splicing and has more than 20 years of experience in the production of glue threads ,veneer zig-zag splicing machine and supplies other woodworking machine.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T,Western Union,Cash;Language Spoken:English,Chinese

---
