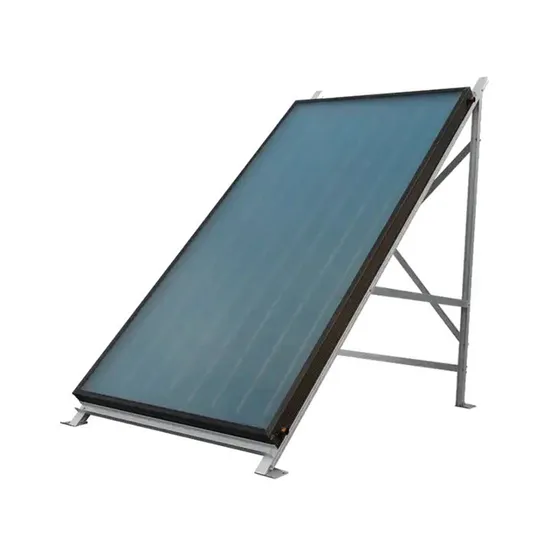

Experienced Manufacturer of Solar Energy Flat Panel Collector with CE Certificate

Product Description

We produce High-Pressure Flat Plate solar thermal collectors. We also provide OEM manufacture for customer's Brand/LOGO. Technical specifications for High-Pressure (Flat Plate) solar collectors.

Flat Plate Collector	2000×1000×80 mm	2000×1250×80 mm
Area	2 m2	2.5 m2
Weight	35 kg	39 kg
Absorber coating	Blue coating / Black coating	Blue coating / Black coating
Pipe material	Copper TP2	Copper TP2
Header pipe	Copper Φ22 mm	Copper Φ22 mm
Riser pipe	Copper Φ10 mm	Copper Φ10 mm
Connector	3/4"	3/4"
Cover	Low iron texture tempered glass EPDM	Low iron texture tempered glass EPDM
Frame	Anodized aluminum alloy	Anodized aluminum alloy
Working fluid	Glycol	Glycol
Max. working pressure	10 bar	10 bar
Max. working temperature	200 ºC	200 ºC

---
