US$9,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
C6266C C6241 C6246 C6256 C6266
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Controlling Mode
Artificial
Certification
CE, RoHS, ISO 9001
Swing Over Cross Slide
570mm
Taper of Spindle Bore
Mt5
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description
LATHE FEATURES:

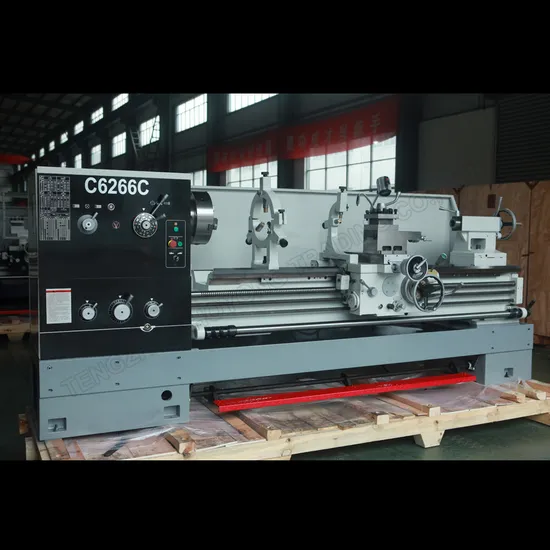

High precision gap bed lathe machine swing over bed 660mm
1. The surface of the bedways is supersonic frequency.
2. The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
3. There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D. P. Threads.
4. An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length.
SPECIFICATIONS:
| MODEL | C6266C |
| Max. Length swing diameter | Over bed | mm | 660 |
| Over carriage | mm | 420 |
| In gap | mm | 870 |
| Max. length of workpiece | mm | 1000/1500/2000/3000 |
| Effective length in gap | mm | 240(9") |
| Spindle | Spindle bore | mm | 105(4") |
| Taper of bore | | 113mm 1:20 |
| No.of speed | | 12 |
| Range of speeds | r.p.m | 36-1600 |
| Thread cutting | Metric range /NO | | 1 ~14mm/22 |
| Inch range/no | | 28 ~2 t.p.i/25 |
| D.p. Rang/no | | 56 ~4 D.P/24 |
| Module range/no | | 0.5~7mm/18 |
| Range of feeds | Leadscrew | mm | 0.028-6.43 |
| Cross | mm | 0.012-2.73 |
| Rapid traverse | Leadscrew | m/min | 4.5 |
| Cross | m/min | 1.9 |
| Tailstock sleeve | External diameter | mm | 75(2-61/64") |
| Taper of bore | | MT5 |
| Max. Travel | mm | 150 |
| Max. travel of compound rest | mm | 145(5-3/4") |
| Max. cross slide travel | mm | 310(12-3/32") |
| Max. size of tool shank (WxH) | mm | 25x25(1"x1") |
| Power of main motor | kw | 7.5(10HP) |
| Overall dimensions (LxWxH) | mm | 2500/3000/3500/4500x1100x1450 |
| Net weight | kg | 2500/2700/3000/3350 |
| STANDARD ACCESSORIES : | SPECIAL ACCESSORIES |
325 3-jaw chuck
Face plate
Morse reduction sleeve 113 1:20/M.T.No.5
Centers M.T.No.5
Wrenches
Operation manual | 400 4-jaw chuck
250 Drive plate
Steady rest
Follow rest
Taper turning attachment |
>>
