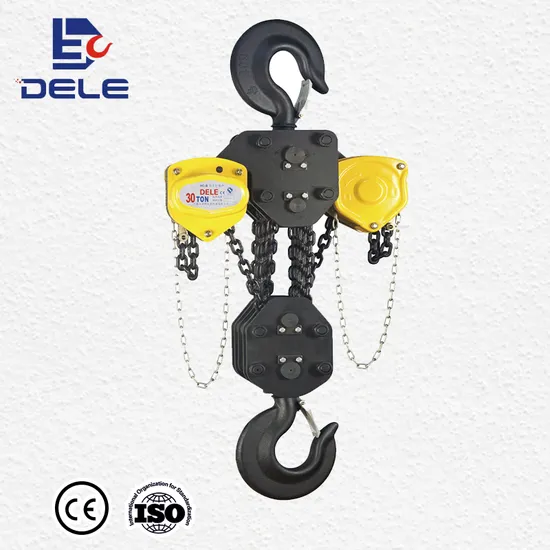

Manual Rotation Chain Hoist Block Lift Crane

Product Description

Products Description
High quality VC-B model manual chain hoist lifting equipment
APPLICATION
Make by Standard:EN13157
The VC-B Series Chain Hoist is a portable lifting device operated by hand chain.It is suitable for use in factories, mines, farms, construction sites,wharvs,docks and warehouses for installation of equipment, as well as for loading and unloading goods.It is specially advantageous for lifting work in the open air and places where no power supply is available.The chain hoist can be attached to a trolly of any type as a traveling chain hoist.It is suitable to monorail overhead conveying system,hand reavelling crance and jib crane.
FEATURES
1.Safe,reliable in operation with minimun maintenance.
2.High efficiency and small handpull.
3.Double-pawl brake system desigend for safety and reliability.
4.Roll-dege han wheel cover and two hand chain guides ensure smooth operation of the hand chain.
5.Double enclosure of the brake mechanism to keep out rain water and dust.
6.Safety factor:4 to 1.
6.Fatigue tested at 1.5 times of working load limit to 2000 cycles.

Model VC-B005 VC-B010 VC-B015 VC-B020 VC-B030 VC-B050 Capacity t 0.5 1 1.5 2 3 5 Standard Lift m 3 3 3 3 3 3 Proof Load t 0.75 1.5 2.25 3 4.5 7.5 Effort Required To Lift max. Load n 200(20.5) 320(32.5) 360(36.5) 365(37) 385(39) 435(44.3) Load Chain mm 6×18 6×18 8×24 8×24 8×24 10×30 Strands Of Load Chain 1 1 1 1 2 2 Dimensions(mm) A 137.5 146.5 170 170 170 190.4 B 137 162 183 194 220 288 Hmin 270 317 399 414 465 636 D 35 35.5 45 42.5 50 64 K 28 26 32.5 32 37 46 Net Weight kg 8.4 11 16.2 18.5 25.6 42.8 Extra Weight Per Metre Of Extra Lift kg 1.7 1.7 2.3 2.3 3.7 5.3

Model VC-B075 VC-B100 VC-B150 VC-B200 VC-B300 Capacity t 7.5 10 15 20 30 Standard Lift m 3 3 3 3 3 Proof Load t 11.25 15 22.5 30 45 Effort Required To Lift max. Load n 435(44.3) 435(44.3) 435(44.3) 435×2(44.3×2) 435×2(44.3×2) Load Chain mm 10×30 10×30 10×30 10×30 10×30 Strands Of Load Chain 3 4 8 8 12 Dimensions(mm) A 190 190 241 209 312 B 377 384 416 625 691 Hmin 768 798 918 890 1380 D 64 85 85 110 110 K 46 50 61 81 81 Net Weight kg 62.5 79.5 115 163.6 220 Extra Weight Per Metre Of Extra Lift kg 7.5 9.7 13.8 19.4 28.2

Details Images
The Quality comparison of spare parts
Customized Service
Production process
Certifications
Usage
Payment
Our Service
FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.

---
