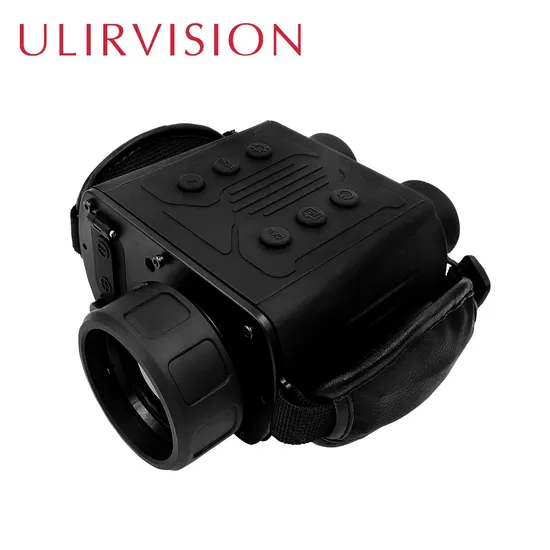

Product Description Wolf30 as high-quality thermal binoculars, can detect various targets in any harsh environment. They have been widely used in the night observation and surveillance.
| Item | Wolf30 |
| Detector Data |
| Type | Uncooled FPA |
| Material | aSi |
| IR resolution | 384×288 |
| Pixel pitch | 17μm |
| Spectral range | 8~14μm |
| NETD/Sensitivity | ≤70mK |
| Lens Data |
| Focal distance | 50mm | 75mm |
| FOV | 7.5°×5.6° | 5.0°×3.7° |
| Recognition distance(Vehicle) | 1200m | 1600m |
| Recognition distance(Human) | 420m | 600m |
| Eye relief | 22mm |
| Diopter | -5~+5 |
| Image Performance |
| Display | 800×600 binocular OLED |
| Polarity/LUT mode | Black hot/White hot |
| Frequency | 50Hz |
| Focus mode | Manual |
| Noise reduction | Digital filtering |
| Digital zoom | 2X ,4X |
| Image enhancement | Manual |
| Startup time | 4s |
| Contrast/Brightness | Manual |
| Compass | No |
| Interfaces |
| Format | Composite aviation plug |
| Power interface | Yes |
| Video output | PAL |
| Storage card | 32G |
| Power System |
| Battery type | 2pcs 18650 lithium batteries |
| Operation time | ≥6h continuous(normal temperature) |
| Environment Parameters |
| Operating temperature range | -20ºC~+50ºC |
| Storage temperature range | -45ºC~+70ºC |
| Encapsulation | IP67 |
| Vibration& Shock | MIL-STD-810F |
| Physical Data |
| Size | 183mm×138mm×76mm(without eyepiece) |
| Weight | <1.2kg(50mm lens with battery) |
| Packing |
| Standard | Thermal imaging binocular, 4pcs batteries, Charger, Composite output cable, Warranty card, User manual, Certificate, Transport case |
