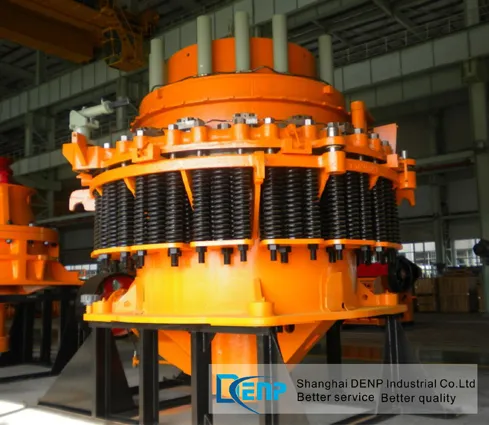

Iron Ore/Gold Ore/Granite/Limestone Cone Crusher

Product Description

Cone crusher is suitable for crushing ore and rock which is above 300MPa hardness. It has
Advantages of reliable structure, high production efficiency, easy to modulate, high cost-
Effective. Its spring insurance system is the protecting gear for overload; This system can
Make foreign matter pass the crushing cavity, but not damage the machine, using dry and
Water two sealing type, it can segregate rock powder and lubricant, to ensure reliable
Operation. The crushing cavity type is decide by ore's purpose, normal type is used for
Medium crushing, medium type is used for fine crushing, short type is used for fine
Crushing.
Features
1. High productivity; High quality
2. Less machine stop time
3. Easy maintenance and low cost
4. Unique crushing ability in primary, secondary and tertiary crushing
Principles
The cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-
Shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting
Discharge opening.
During operation, the motor drives the eccentric shaft shell to turn around through a
Horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force
Of eccentric shaft shell so that the surface of the crushing wall is close to the roll
Mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked
And crushed.

Type		Crushing awl Diameter(mm)	Maxfeeding size(mm)	Discharging port Width(mm)	Capacity(t/h)	Motor Power(kw)	Main axle swinging times	Weight(t)	Dimensions(L*W*H)(mm)
PYB	600	600	65	12-25	20-40	30	356	5	2234x1370x1675
PYD			35	3-13	12-23			5.5	2234x1370x1675
PYB	900	900	115	15-50	50-90	5	33	11.2	2692x1640x2350
PYZ			60	5-20	20-65			11.2	2692x1640x2350
PYD			50	3-13	15-50			11.3	2692x1640x2350
PYB	1200	1200	145	20-50	110-168	110	300	24.7	2790x1878x2844
PYZ			100	8-25	42-135			25	2790x1878x2844
PYD			50	3-15	18-105			25.3	2790x1878x2844
PYB	1750	1750	215	25-60	280-480	160	245	50.3	3910x2894x3809
PYZ			185	10-30	115-320			50.3	3910x2894x3809
PYD			85	5-15	75-230			50.2	3910x2894x3809
PYB	2200	2200	300	30-60	59-1000	280-260	220	80	4622x3302x4470
PYZ			230	10-30	200-580			80	4622x3302x4470
PYD			100	5-15	120-342			81.4	4622x3302x4470

---
