| US$30,434.00 | 1 Piece (MOQ) |

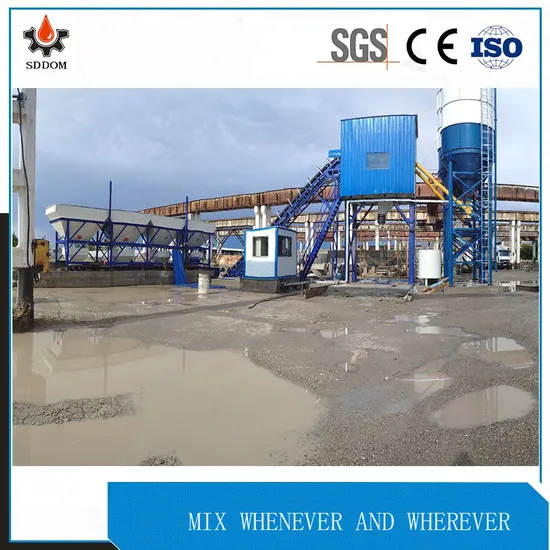

| HZS25 concrete Batching Plant | ||
| 1 | Model | HZS25 concrete batching plant |
| 2 | Capacity | 25m3/h |
| 3 | Total Power | 37KW |
| 4 | Total weight | 14000kgs |
| Configuration | ||
| 1 | Mixer | 500L |
| 2 | Batching Machine | PLD1200 3 Bins |
| 3 | Cement Weighing System | 1 set |
| 5 | Water Weighing System | 1 set |
| 6 | Additive Weighing System | 1set |
| 7 | Storage Hopper | 1 set |
| 8 | Electric Control System | 1 set |
| 9 | The Skip hopper Elevating System | 1 set |
| 10 | Pneumatic System | 1 set |
| 11 | Additive Hoppers | 1 set |
| 12 | Steel Frame | 1 set |
| 13 | Control room | 1 set |
| 14 | Cement silo | Optional |
| 15 | Screw conveyor | Optional |
| MP500 Mixer | ||
| 1 | Lubrication | Automatic |
| 2 | Type | Planetary Mixer |
| 3 | Power | 30KW |
| 4 | Charging/Discharging volume | 750L/500L |
| 5 | Hydraulic Discharge power | 3kw |
| 6 | Planet/main planet | 1/3 |
| 7 | paddle | 1 |
| 8 | Discharge paddle | 1 |
| 9 | Weight | 3900kgs |
| 10 | Discharging height | 3.8M |
| 11 | Working Cycle Period | 60s |
| 12 | Max. aggregate size | 80/60mm |
| 13 | Water spraying system | Multiple pipe, multiple channel |
| 14 | Mixing arms | bolted on shafts |
| 15 | Mixing blades | manganese alloyed wear resistant cast steel |
| JS500 Mixer | ||
| 1 | Lubrication | Automatic |
| 2 | Type | Twin-shaft |
| 3 | Power | 18.5KW |
| 4 | Charging/Discharging volume | 750L/500L |
| 5 | Discharging height | 3.8M |
| 6 | Discharge Way | Auto |
| 7 | Working Cycle Period | 30s |
| 8 | Max. aggregate size | 80/60mm |
| 9 | Mixing blade and scale board | High chrome, resistant material |
| PLD1200 Aggregate Batch Machine | ||
| 1 | Aggregate volume | 5m3*3 |
| 2 | Discharging gate | 6 sets |
| 3 | Aggregate hopper cylinder | 6 sets |
| 4 | Weighing hopper | 1500L |
| 5 | Sensor | 500kg*9 |
| 6 | Measuring precision | ±2% |
| 7 | Belt conveyer | Width: 650mm |
| 8 | Belt speed | 1.25 m/s |
| 1 | Cement Weighing System | Volume | 250L |
| Weighing Range | 0-250kg | ||
| Weighing Accuracy | ±1% | ||
| Pneumatic valve | BV1F300S | ||
| The sensors | 300kg*3 | ||
| 2 | Water Weighing System | Weighing Scale | 150L |
| pump model | QY50-18-4 | ||
| power | 2.2kW | ||
| Sensor | 200kg×2 | ||
| Weighing Accuracy | ±1% | ||
| 3 | Additive Weighing System | Additive pump model | GISGH |
| storage box | 1M3 | ||
| power | 0.37 kW | ||
| Additive Scale | 40L | ||
| Weighing Accuracy | ±1% | ||
| Sensor | 100kg*2 | ||
| Pneumatic butterfly | DN50 |
