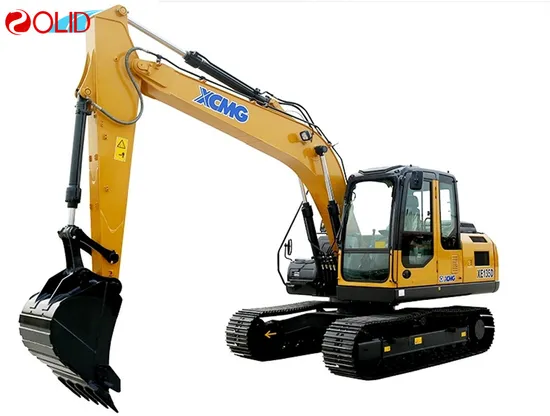

Brand New Hydraulic Tracked Excavator Xe135 13 Ton for Digging and Earthmoving

Product Description

Product Description
13ton Crawler Excavator Construction Machinery Hydraulic Excavators Xe135b XE135B is a small excavator which is comprehensively upgraded and is applicable for a variety of working conditions. The product integrates energy saving, reliability and comfort, features flexible operation and low noise, and is widely used in mines, construction site, underground mining, landscape engineering, municipal construction
1,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
2,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
3,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
4.The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations. Official 13.5 Ton Xe135D Digger Excavator Price
XE135D adopts a new engine jointly developed by SOLID It has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life.
Combined with the new generation XEICS intelligent control system independently developed by SOLID excavator, it can make full use of engine output power, with optimized fuel power curve, it can save up to 7% fuel under the same level of operating efficiency. The main structural components are all optimized by FEA, and after long-term high-intensity operation assessment, the service life is longer.
1. Ecological and economical
* Customized SOLID exclusive engine can meet Euro stage IV Emission Standard.
* Well-known hydraulic components, higher eficiency.
* Minicomputer control technology makes operation more economical.
2.Multiple applications
* Different boom, arm and bucket combinations can provide excellent all-around versatility.
* Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience
* Air conditioner and heater ensure the appropriate temperature.
* Air-suspension seat equipped with electric heating function.
* Integrated control panel and large display screen provide multiple information.
Product Parameters
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speedis up to 40km/h to realize faster site transfer speed.2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.4. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soilholding capacity.
M

Model		Unit	XE135D
Operating weight		Kg	13200
Bucket capacity		m³	0.32-0.61
Engine	Model engine	/	QSF3.8
	Injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	86/2200
	Maximum torque/speed	N.m/rpm	470/1300
	Displacement	L	3.8
Main performance	Travel speed	km/h	5.2/2.9
	Swing speed	r/min	11
	Gradeability	°	35
	Ground pressure	kPa	40.4
	Bucket digging force	kN	99.1
	Arm digging force	kN	68
	Maximum tractive force	kN	134
Hydraulic system	Rated flow of main pump	L/min	125.4*2
	Travel system pressure	MPa	34.4
	Swing system pressure	MPa	25
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	260
	Hydraulic tank capacity	L	105
	Engine oil capacity	L	11
Appearance size	Overall length	mm	7795
	Overall width	mm	2525
	Overall height	mm	2880
	Width of platform	mm	2490
	Total width of chassis	mm	2490
	Track shoe width	mm	500
	Wheel base of crawler	mm	2918
	Track gauge	mm	1990
	Counterweight clearance	mm	931
	Min. ground clearance	mm	466
Working range	Max. digging height	mm	8638
	Max. dumping height	mm	6174
	Max. digging depth	mm	5546
	Max. vertical wall digging depth	mm	4698
	Max. digging radius	mm	8304
	Min. swing radius	mm	2445
Standard	Length of boom	mm	4600
	Length of arm	mm	2520
	Bucket capacity	m³	0.52

Attached Tools
Attached Tools for Mini Excavator
Breaking Hammer
When you need to break up the asphalt or concrete pavement, or some other hard surfaces, the excavator breaking hammer could help to finish the work with the great impact of energy.
Drilling Auger
Powered by hydraulic circuits, and equipped with a spiral blade, the drilling auger has the ability to reach over objects and drill deep holes. Augers come in different specifications and sizes for various digging conditions and terrains such as landscaping and construction for the consistent holes.
Buckets
Buckets are the most standard attachments seen on excavators. Besides the common size installed on excavators, there has also some other options for a different purposes. The width could be200mm,250mm,450mm,500mm,600mm,1000mm, etc. with or without bucket teeth.Besides, the tilt bucket is also available for special works.
Quick Hitch
A quick hitch is also called a quick coupler, driven by mechanical or hydraulic power. Couplers allow you to quickly switch between tools and attachments without a crew when you need multi-tools on the excavator. They can help maximize the versatility of your excavator and boost your team's productivity
Ripper
Rippers are another excellent attachment for tearing through tough materials. These durable tools can break up frozen ground or demolish structures.
Rated Excavator
Packaging & Shipping

Transportation of roll-offs:For long-distance transportation of XE135 crawler excavator, roll-off transportation may be used. This method involves loading the mXE135 crawler excavator onto a specialized roll-off container, which can be easily rolled on and off the transportation vehicle. This transportation method is fast and efficient for loading and unloading the XE135 crawler excavator Crating of framed containers:Another transportation method for XE135 crawler excavator is crating within framed containers. In this method, XE135 crawler excavator is placed inside a specially designed framed container, which provides additional protection during transportation. The container can be loaded onto a transportation vehicle and secured in place for safe transport. Transportation of bulk cargo:For short-distance transportation of XE135 crawler excavator, bulk cargo transportation may be used. This method often involves loading the XE135 crawler excavator onto a flatbed truck and securing it in place for transport. This method is efficient for transporting XE135 crawler excavator over short distances, such as within a city or town.
SOLID with customers
Working Case
The XE135 hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility for small-sized excavators.
Its working mechanism has a high-strength structure, able to meet the demands of all kinds of earthwork engineering if working together with a reinforced bucket;
The latest hydraulic components and electromechanical integration control technology can make full use of the engine power and save every drop of fuel to create more value for customers;
Its high-power driving motor can work freely in a variety of sites;
All kinds of points for daily maintenance and service can be accessible easily on the ground, which can further facilitate the maintenance operation. Company Profile
SOLID was founded in 2008 year. Since then, SOLID has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.SOLID is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2ND in the list of China's Top 100 Machinery Manufacturers. SOLID is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being "Rigorous, Practical, Progressive, and Creative" in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.SOLID mainly supply Hoisting machinery, MiningMachinery Machinery, , Excavators, Loaders, Road Machinery, Piling Machinery, Non-Excavation Machinery, Concrete Machinery, Special Vehicle, Aerial Working Equipment, Sanitation Machinery, Fire-fighting Machinery, Tunnel Machinery, Resource Exploration Machinery, Port Machinery and so onSOLID products, including mechanical vibratory road rolls, mini excavators .mini digger ,and motor graders, have successfully participated in the construction of the largest railway project in the Philippines, thanks to their outstanding performance and comprehensive after-sales service. These three types of machines have contributed to the project's progress in an organized manner. During our on-site visits to customers, they expressed that SOLID products are reliable in quality, and the compact excavator equipped with a hydraulic breaker delivers excellent impact force. This effectively ensures the project's advancement and contributes to its completion within the expected timeframe, providing additional momentum to the development of local livelihood projects.

---
