Welcome to visit

Table Type Cold Welding Machine

US$400.00-1,500.00 1 Set (MOQ)

Basic Info.

Model NO.
J3
Style
Handheld
Shielding Gas
No
Electric Current
No
Type
Cold Press Welder
Machine Type
Hand Welding Machine
Welding Method
Pressure
Welding Material
Copper/Aluminum/CCA/CCAM
Welding Wire Size
0.7- 6.0mm
Machine Frame
Stainless Steel
Weight
35 Kg
Delivery Time
1 Day
Quality Guarantee
12 Month
Transport Package
Wooden Box
Specification
30 kg
Trademark
HIGH LAND
Origin
China
HS Code
8468800000
Production Capacity
100 Sets/Month

Product Description

Table type Cold Welding Machines
1. Application: Cold welding machine is used to connect metal wires by pressure at normal temperature, when pressuring two pieces of metal wires, the oxidized surface is destroyed and extruded, the pure metal realized intergranular bonding. The applied pressure is generally higher than the metal yield strength produce the 60% to 90% deformation.
2. Main technical parameter
HL-J1 Table type Cold Welding Machine
S/N ITEM SPECIFICATION
1 Welding wire size Copper: Ø 0.12 - Ø 0.50 mm
Aluminum: Ø 0.15 - Ø 0.6 mm
2 Machine frame Precision casting by steel
3 Machine size 250 × 65 × 145 mm
4 Machine weight 3.2 kg
HL-J2 Table type Cold Welding Machine
S/N ITEM SPECIFICATION
1 Welding wire size Copper: Ø 0.35 - Ø 1.35 mm
Aluminum: Ø 0.35 - Ø 1.5 mm
2 Machine frame Precision casting by steel
3 Machine size 250 × 65 × 145 mm
4 Machine weight 12.8 kg
HL-J3 Table type Cold Welding Machine
S/N ITEM SPECIFICATION
1 Welding wire size Copper: Ø 0.70 - Ø 4.5 mm
Aluminum: Ø 0.70 - Ø 5.5 mm
2 Machine frame Precision casting by steel
3 Machine size 280 × 186 × 282 mm
4 Machine weight 37 kg
HL-J4 Table type Cold Welding Machine
S/N ITEM SPECIFICATION
1 Welding wire size Copper Alloy: Ø 0.70 - Ø 4.6 mm
Aluminum Alloy: Ø 0.70 - Ø 4.6 mm
2 Machine frame Precision casting by steel
3 Machine size 320 × 210 × 360 mm
4 Machine weight 42 kg

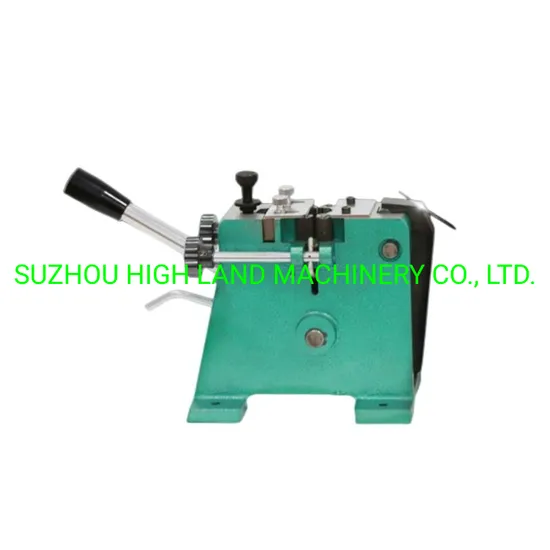

3. Main Machine Photos
