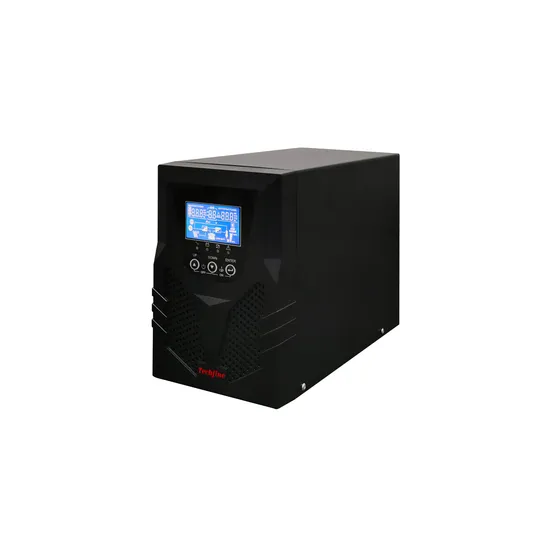

Online UPS Single-Phase Pure Sine Wave UPS Battery Uninterruptible Power Supply PF 0.9 Power Factor High-Frequency 1kVA 3kVA 6kVA UPS Frequency Range: 40Hz~70Hz

US$100.00-1,000.00 10 Pieces (MOQ)

Basic Info.

Model NO.
UPS
Protection
Unbalanced Loads
Application
Fire Safety
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Brand
Xinsilu
Transport Package
Crate
Specification
282*145*220
Trademark
NICEA
Origin
China
HS Code
3101
Production Capacity
500pieces/Week

Product Description

Model Wall-mounted type Vertical type
6KVA 10KVA 6KVA 1OKVA
Capacity 6KW 10KW 6KW 10KW
In put

Voltage Range		 Minimum switching voltage At 50% load, 11OVAC z3%; at 100% load, 176VAC13%
Minimum recovery voltage Minimum switching voltage +10V
Maximum switching voltage 300VAC*3 %
Maximum recovery voltage Maximum switching voltage -10V
Frequency Range 40-60HZ@50HZ system/50-70HZ@60HZ system
Phase L+ N+PE
Power Factor 100% load*0.99
Output
Output Voltage 208/220/230/240VAC
Output Voltage Accuracy *1%
Frequency Range (synchronization range) 40-60hz@50HZsystemI50-70HZ@60HZsystem
Frequency Range (battery mode) 50hz*0.1HZor60HZ*0.1HZ

Overload		 AC Mode 30min@102%-110%Ioad, 10min@110%-130%load 30s@130%-150%Ioad, 500ms@ >150%Ioad
Battery Mode 10min@102%-110%Ioad, 1min@110%-130%Ioad 10s@130%-150%Ioad, 500ms@ >150%Ioad
Current peak ratio 3:1 (Maximum)
Harmonic distortion S2% ( linear load ) , 5%(non-linear load)
Switching time Mains Battery Oms
Inverter Bypass Oms
Effectiveness
AC Mode 95%
Battery Mode 94.8% (20pcs batteries)
Battery

Standard		 Battery Number 12-16 pcs 16 pcs 12-16 pcs 16 pcs
Charging Current default 1A
Charging Voltage 13.65 x NI-1%

Long Run		 Battery Number 16 -20 pcs
Charging Current Preset: 6A-L 10%, 1-12A optional
Charging Voltage 13.65 x N+1%
Apperance
Standard Size Long•Width•High(mm) 380*438*88
(Battery pack size: 496a438 130)		 384"190*730
Long Run Size
Long Width High(mm)		 380"438*88 384"190*335
Environment
Operating Temperature 0 - 40°C
Operating Moisture < 95% And no condensation
Operating Altitude < 1000m"*
Noise less than 50dB@1 Meter
Management
Sm artRS-232 Support Windows@2000/2003/XP/Vista/2008. Windows@7/8. Linux. Unix and MAC
0 ptional SNMP Support for power management by SNMP administrator and web browser.
