PCB Dry Film Machine Auto Film Laminating Machine

Product Description

Product Description
Features: This device is mainly used for automatic film pressing of PCB dry film, and can also be used for automatic film pasting of flat products. It can be connected to achieve continuous automated production, automatically cutting dry film, reducing manual work intensity, and reducing the generation of dry film debris, which greatly helps to improve product yield.

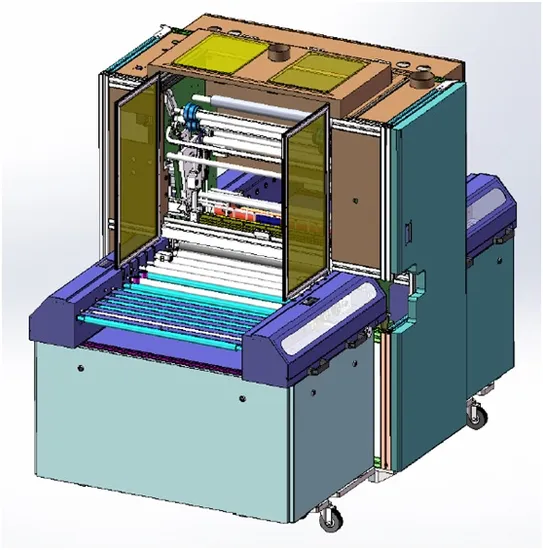

Dry Film Auto Cutting Laminator
model number: GH-D740
current source:AC380V 3 Phase 12KW 50HZ
pressure :5-8kgw/cm2
outline dimension:L2200*W1H1910m640*m
The effective width of the film pressure:750MM
Baseline length: 350~760mm
Baseline width: 350~760mm
Baseline thickness: 0.1~3.3mm
Dry film size:
Membrane width:250~750mm
film thickness:15~76μm
Membrane diameter:external diameter 200mm
control method:PLC+human-computer interface
Hot pressure:Ø 78mm*860mm
Heating method:Inductive heater
Number of hot pressing rollers:2
Pressure membrane speed:velocity range0~5.5m/min Man-machine interface is set arbitrarily.
Film pressure temperature:SSR+PLC temperature control indoor temperature~130ºC
Main material:SUS304Mirror stainless steel.
Pressure membrane pressure:2-6kg/cm2(adjustable)
vacuum grip device:Five-section operation width setting
Vacuum pump:2.2KW(3HP)
Vacuum suction disc range:9 "~13 ",14 "~17",18"~21",22 "~25 ",23 "~28 "
Silicone wheel Ø 40m/m,Stainless steel roller Ø 31.5mm P=74mm
structure:Host body mobile type, convenient for dry film replacement
Before dew copper:0.0~49.9mm
After dew copper:0.0~12.9mm
Brass error:±1.0mm
Board edge error:±1.0mm
exhaust:40CM(caliber Ø 4")
Equipment Weight: about 1600 kg

---
